Product Description

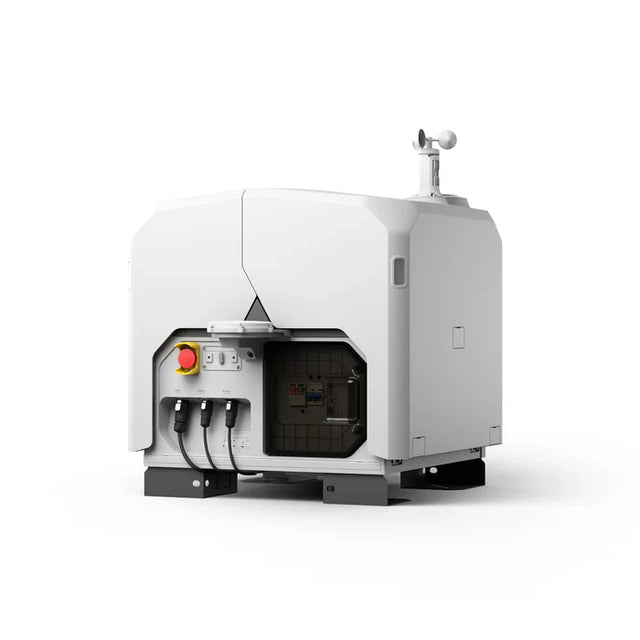

The DJI Dock 3 enables 24/7 remote operations and, for the first time, supports flexible vehicle-mounted deployment. Paired with high-performance Matrice 4D drone, it delivers enhanced flight performance and protection. The Dock 3 delivers true unattended flight with long-range transmission, rapid deployment, and intelligent automation via DJI FlightHub 2.
Key Features
- Vehicle or Fixed Deployment – Mount on a truck or install on-site for maximum flexibility
- All-Weather Ready – Operates in extreme heat, freezing cold, wind, and rain
- Smart Emergency Response – FlyTo tasks, low-latency live view, and real-time cloud modeling
- Professional-Grade Drones – Equipped with thermal, laser ranging & obstacle avoidance systems
- Obstacle sensing with LiDAR & radar for precise wire-level avoidance
- Full-color and IR night vision for 24/7 missions
- Flexible Deployment & Ultra-Long Transmission – The D-RTK 3 Relay enhances signal quality and extends the max transmission distance
- Efficient and Intelligent Operations – FlyTo Tasks allow the drone to reach a point 1 km away at 100 m altitude within 100 s. Real-time streaming and cloud-based modeling ensure rapid situational awareness and post-flight data processing.
- High-Precision Flight and Inspection – UHR infrared imaging, Night Scene mode, and tele cameras enable precise inspection in complex or low-light environments.
What's Included
| Description | Quantity |
|---|---|
| DJI Dock 3 Body | 1 |
| Wind Speed Gauge Module | 1 |
| Expansion Bolt | 4 |
| Ethernet Cable Connector | 1 |
| Power Cable Connector | 1 |
| Wire Ferrule | 6 |
| Screws and Tools | 1 |
| Matrice 4D Aircraft | 1 |
| CW Low-Noise Anti-Ice Propellers (Pair) | 1 |
| CCW Low-Noise Anti-Ice Propellers (Pair) | 1 |
| Screws and Washers | 1 |
| DJI Matrice 4D Battery | 1 |
| DJI RC Plus 2 Controller | 1 |
| DJI 240W Power Adapter | 1 |
Product Specifications
- Professional-Grade Drones – DJI Matrice 4D
- Long-Range Autonomy – Maximum 25 km transmission range and 47-minute flight time
- Operating Temperature: -30°C to 50°C (-22°F to 122°F)
- Heat resistant: Maximum 50°C (122°F)
- Cold resistant: Minimum -30°C (-22°F) after preheating
- Stable in winds up to 12 m/s
- IP Ratings: IP56 (dock), IP55 (aircraft) resistance
- Weight: 55 kg (without aircraft)
- Dimensions (Closed): 640 × 745 × 770 mm
- Dimensions (Open): 1760 × 745 × 485 mm
- Input Power: Max 800 W, 100–240V AC
- Max Altitude: 4500 m
Software Compatibility
- DJI FlightHub 2 – Intelligent route planning, auto-zoom tracking & remote control
- Supports DJI Enterprise App.
-
Intelligent Operation – Features like optimal route planning, low-latency live view, and in-flight data transmission streamline emergency response and inspections.
System Applications
- Public Safety & Emergency Response
- Powerline & Infrastructure Inspections
- Geographic Surveying & Mapping
- Oil, Gas & Renewable Energy Operations
- Roads, Bridges & Maritime Monitoring
- Water & Maritime Operations
