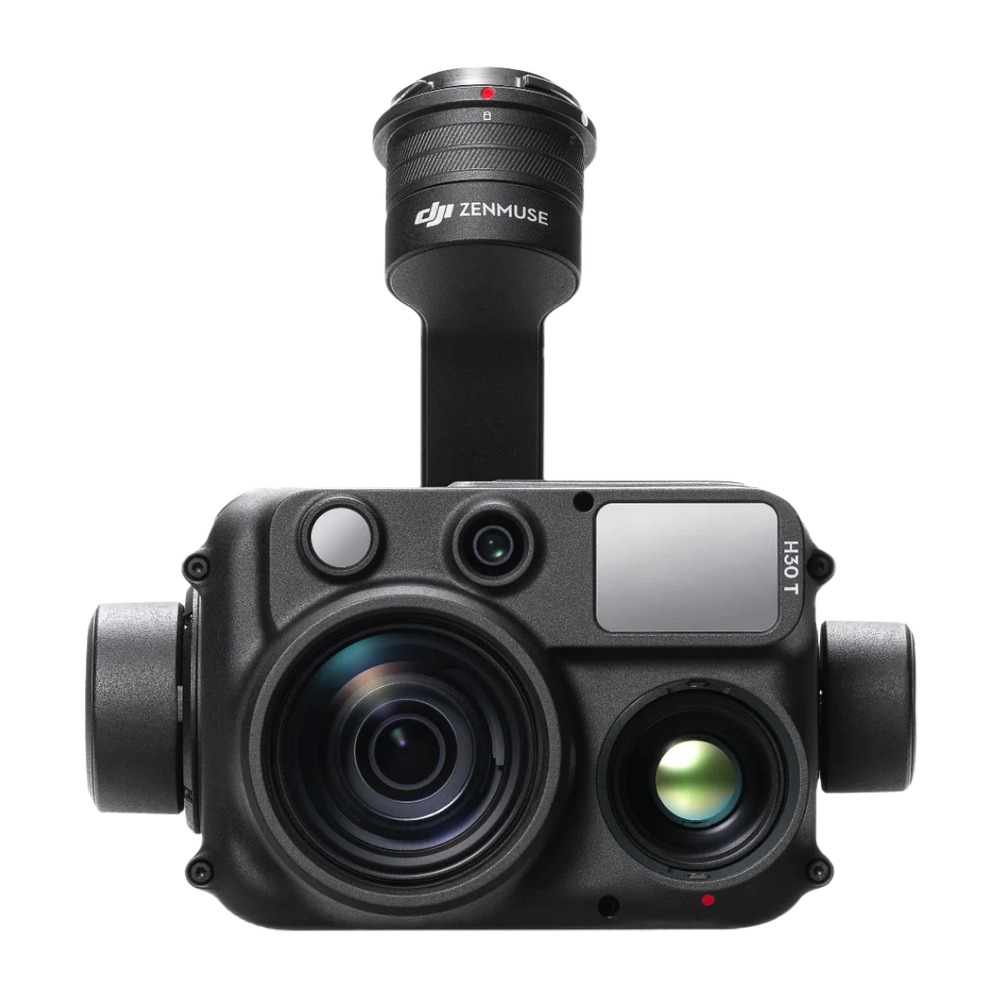

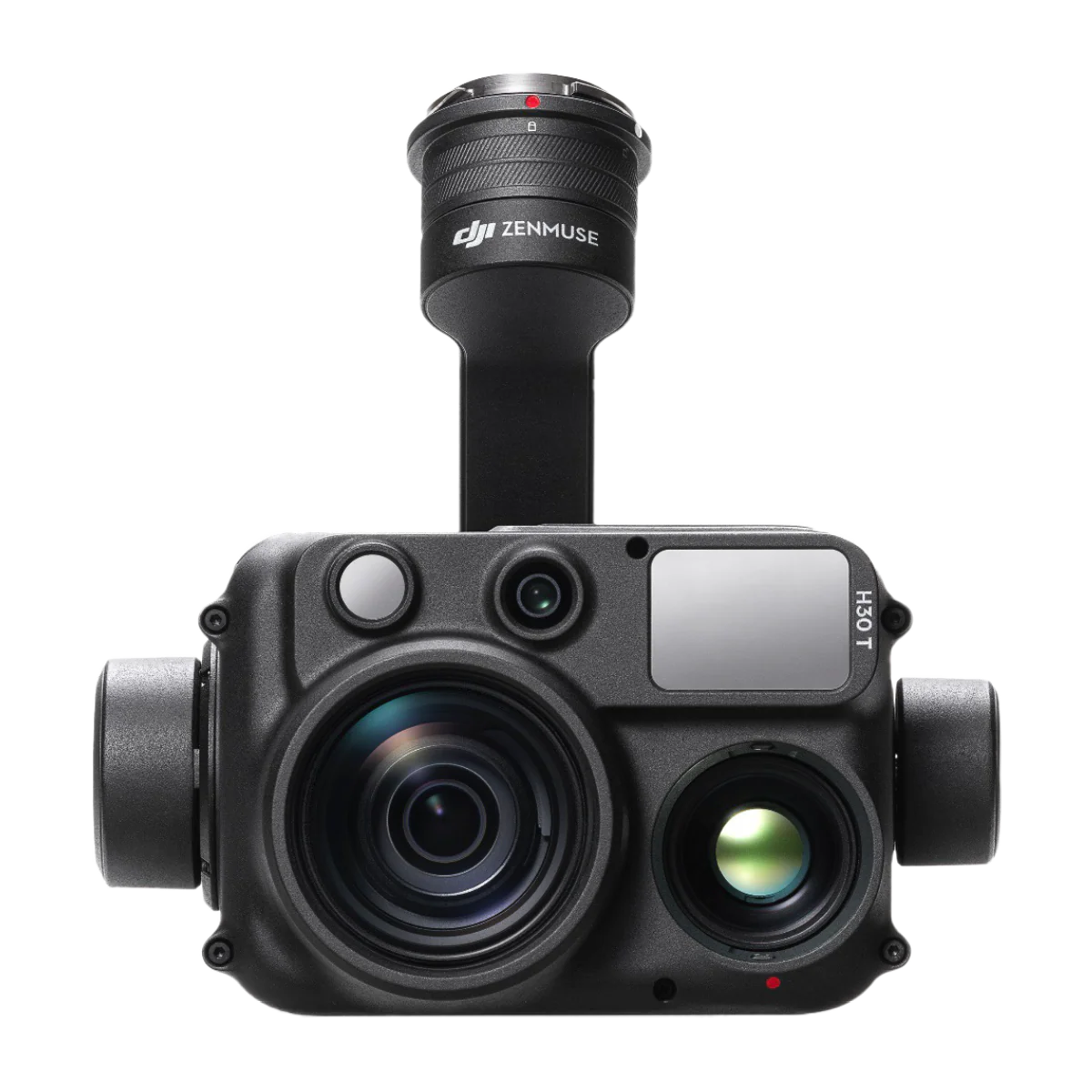

DJI Zenmuse H30T Camera | All-Season Max-Sensor Payload

Product Description

Unparalleled Vision, Day or Night
The flagship Zenmuse H30 Series is an all-weather, multi-sensor payload featuring five core modules: a wide-angle camera, zoom camera, infrared thermal camera, laser rangefinder, and NIR auxiliary light. Powered by advanced intelligent algorithms, it redefines imaging and perception—delivering reliable performance in both day and night scenarios. Ideal for applications such as public safety, energy inspection, water conservation, and forestry.

Key Features

More Powerful Infrared Performance, 1280×1024 Infrared Resolution

• The H30T features 4× higher resolution than before and up to 32× digital zoom. UHR mode ensures sharp thermal images even at high zoom levels.

High-Res Mode for Precise Observation

• The H30T offers High Gain, Low Gain, and the new High-Res modes. High-Res excels in identifying subtle temperature differences—vital for rescue and security missions.

Visual and IR Cameras Simultaneous Zoom

• Link Zoom syncs visible and thermal images, aligning views for fast subject identification and efficient operations.

Laser Rangefinder (LRF)

• Accurately measures distances from 3 to 3000m (~9842 ft), improving mission awareness and operational accuracy.

NIR Auxiliary Light

• Enhances visibility during low-light operations, supporting critical nighttime tasks with added illumination.

Product Performance

Versatile Performance, Day and Night, Wide-Angle Camera

• Equipped with a 1/1.3-inch CMOS sensor and 48MP effective pixels, the wide-angle camera captures detailed imagery, even in low-light environments.

Superior Zoom Camera

• The 40MP zoom camera with a 1/1.8-inch CMOS sensor delivers up to 34× optical and 400× digital zoom, providing exceptional clarity and precision.

Powerful Infrared Thermal Camera

• With a 1280×1024 resolution, the thermal camera supports precise temperature readings across a wide range of -20°C to 1600°C (-4°F to 2912°F).

Temperature Measurement Range from -20° to 1600° C (-4° to 2912° F)

• Using an IR density filter, the H30T can now detect temps up to 1600°C—3× the previous range—essential for firefighting and high-heat scenarios.

Up to 34× Optical and 400× Digital Zoom

• The H30 Series’ high-res 40MP zoom camera allows for long-range observation and detailed capture, outperforming its predecessor in range and image quality.

More Stable Imagery from the Zoom Camera

• With DJI’s advanced stabilization algorithm, telephoto images are significantly more stable, ideal for inspections like power lines.

Max 3000m Laser Range Finder

• The upgraded LRF offers 2.5× the range of the previous version, capturing distance, elevation, and GPS data between 3 m and 3000 m.

Product Applications

• Public Safety & Search and Rescue
• Energy & Power Line Inspections
• Forestry & Environmental Monitoring
• Asset & Infrastructure Management
• Firefighting & Emergency Response
