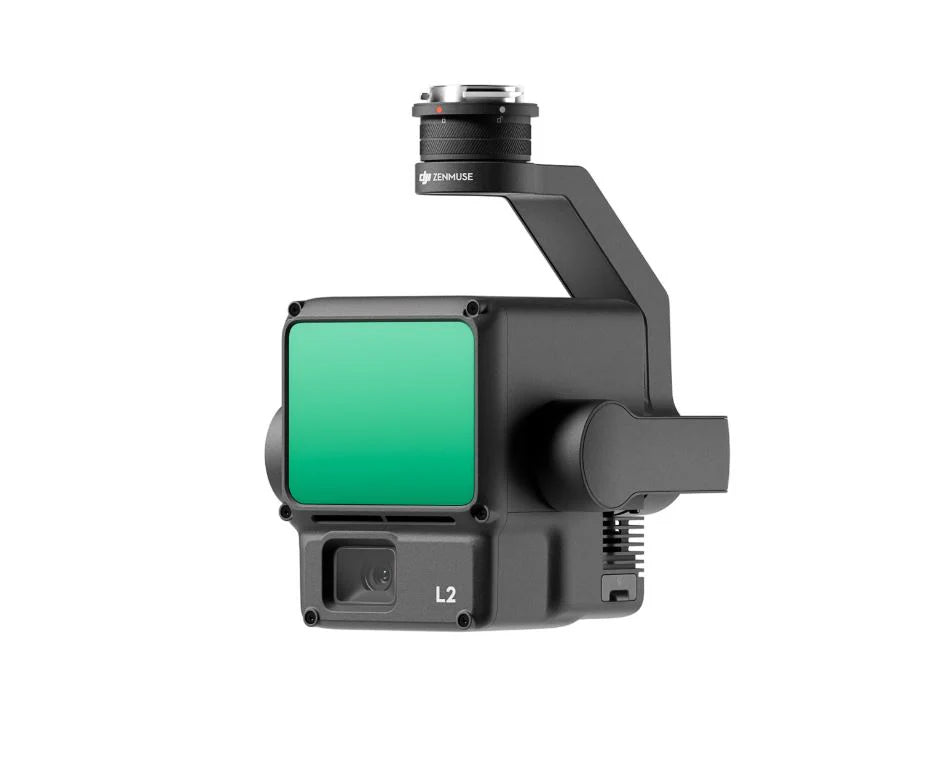

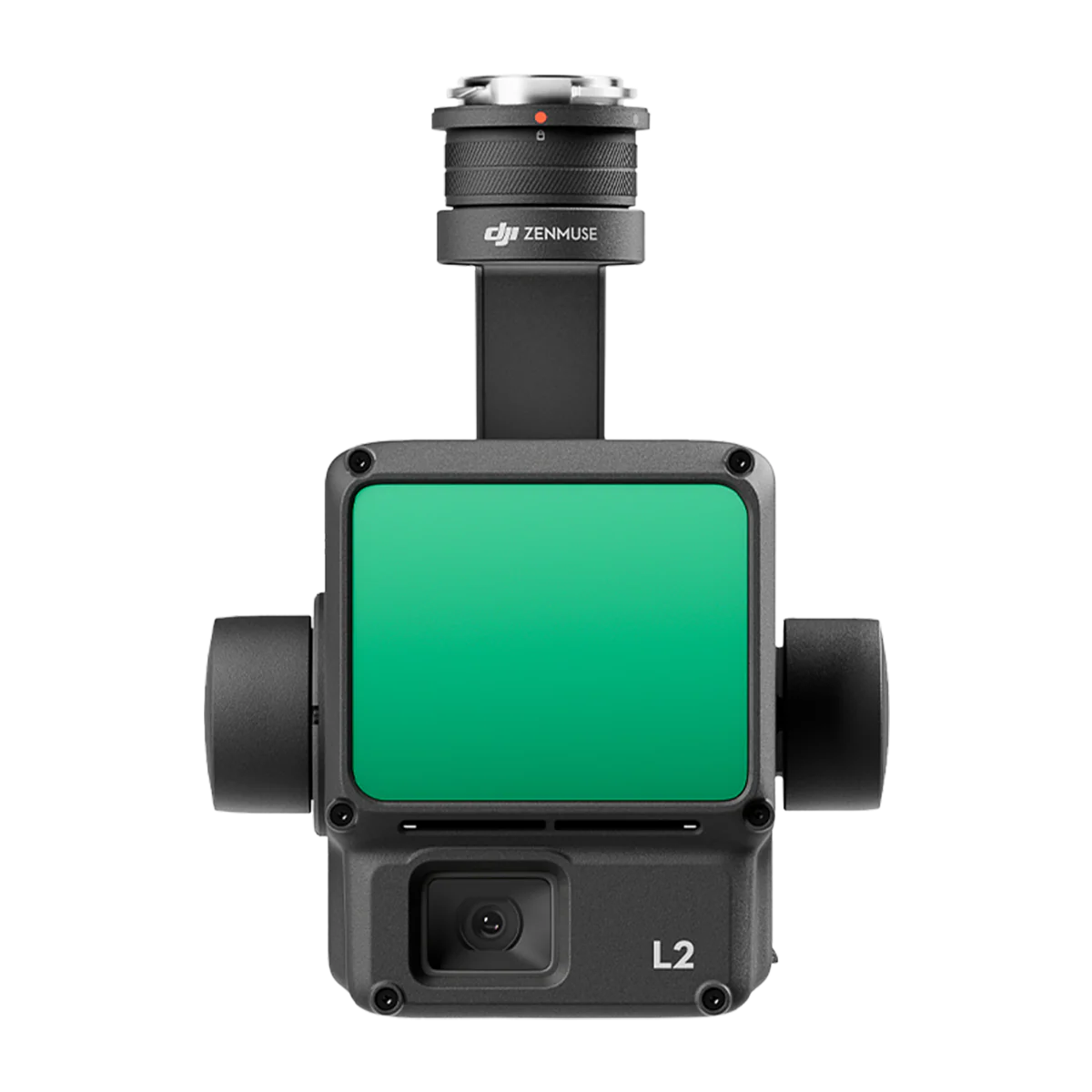

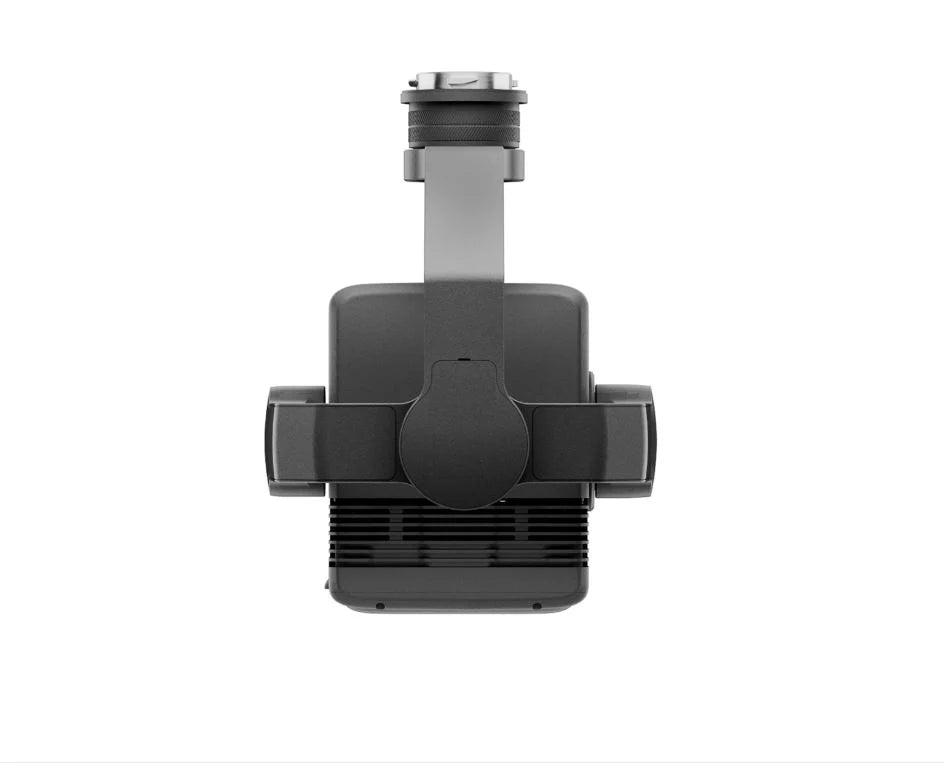

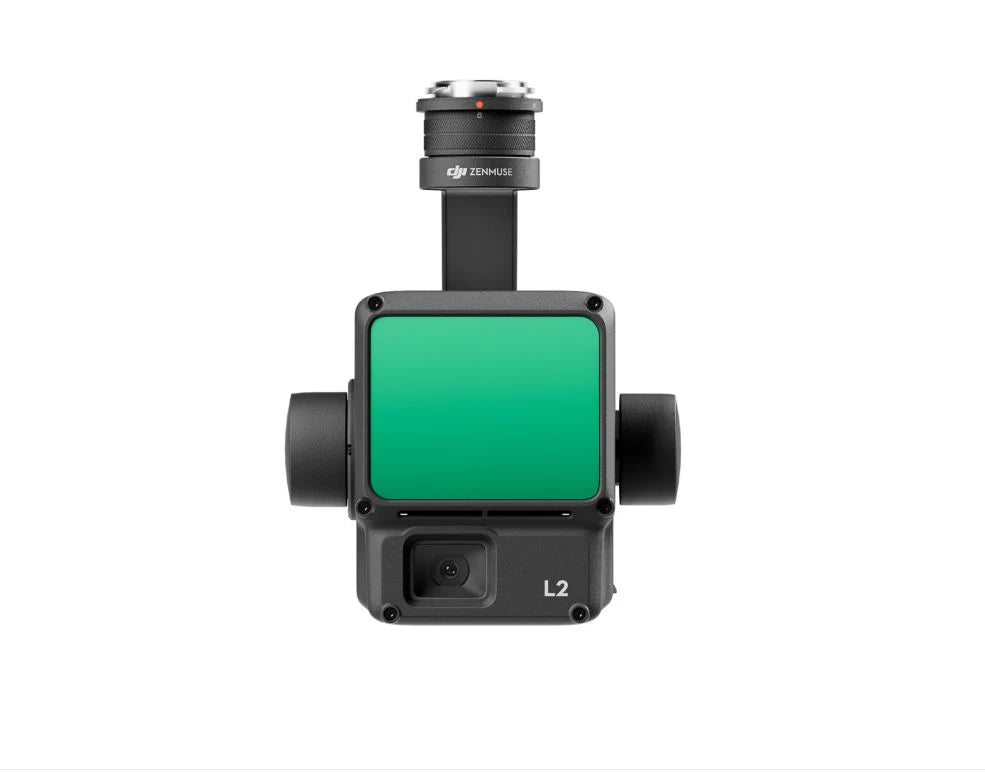

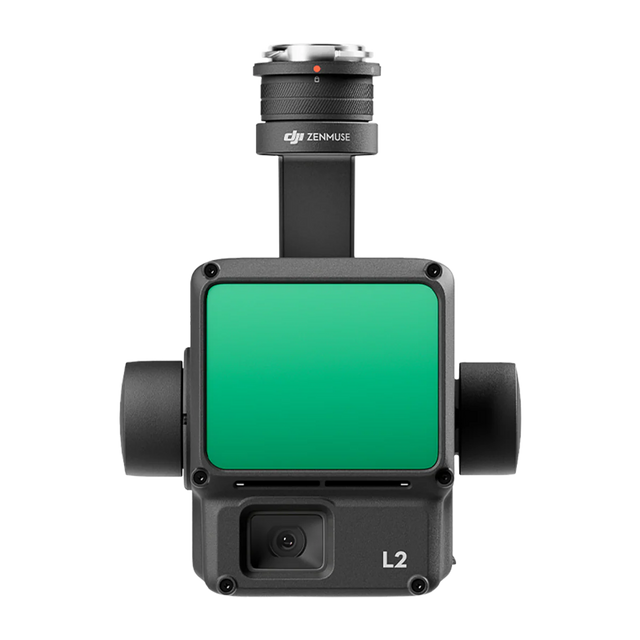

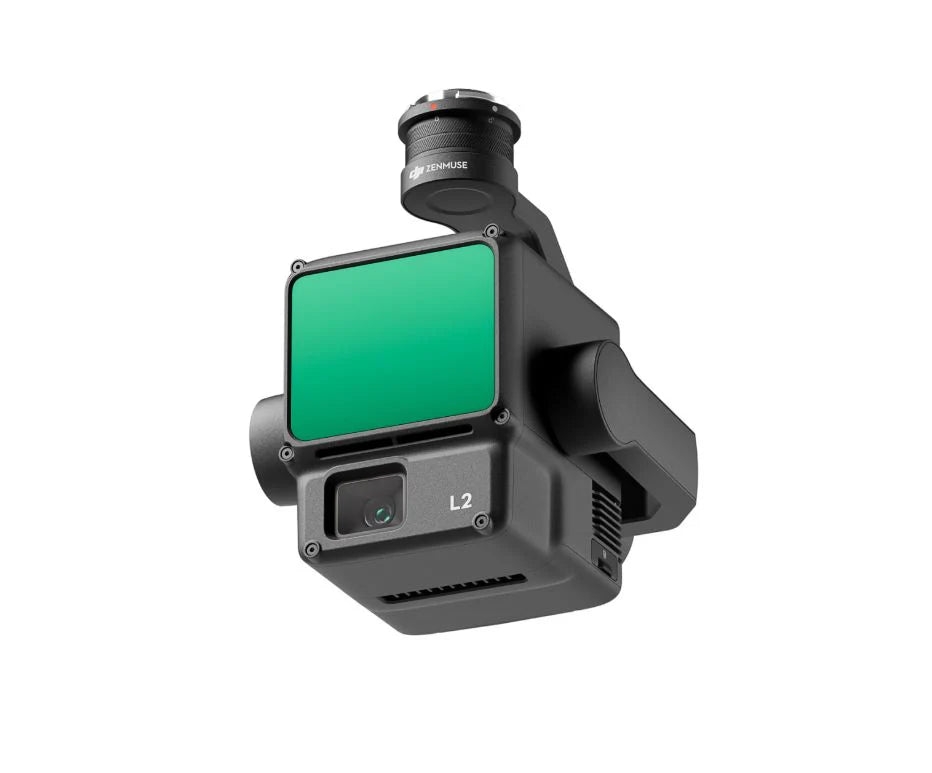

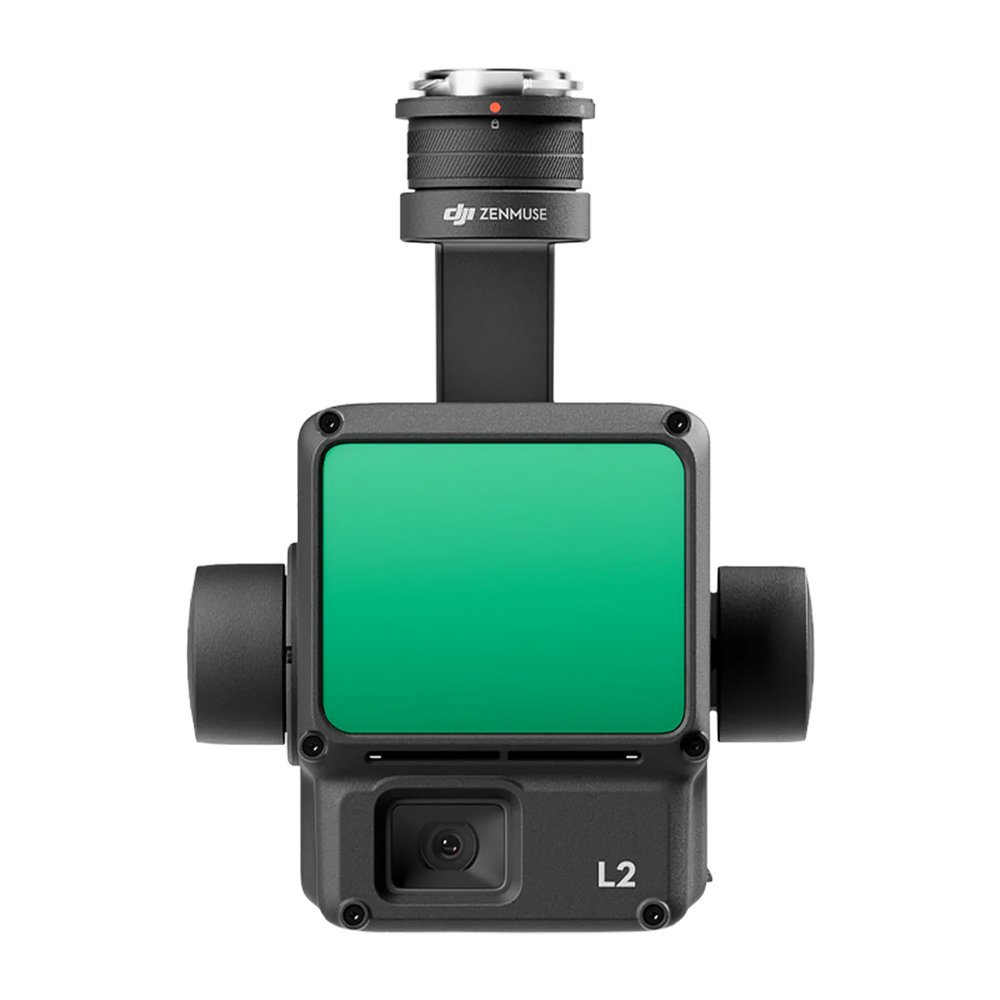

DJI Zenmuse L2

High-Precision Aerial LiDAR Solution

The DJI Zenmuse L2 is an integrated LiDAR system combining a frame-based LiDAR sensor, self-developed high-precision IMU, and a 4/3-inch CMOS RGB mapping camera. Designed to work seamlessly with DJI Enterprise platforms, it delivers precise, efficient, and reliable geospatial data collection. When paired with DJI Terra, the L2 provides a complete, streamlined solution for 3D data acquisition and high-accuracy post-processing.

Key Advantages

• High Precision

• Exceptional Efficiency

• Superior Penetration

• Supports 5 Returns

• Point Cloud LiveView

• One-Click Processing via DJI Terra

All-in-One LiDAR Platform

Built with robust, high-performance hardware, the L2 delivers detailed scans across a broad range while significantly speeding up point cloud capture. Operators can preview, review, and process point cloud data on-site. DJI Terra automatically generates task quality reports, creating a true turnkey workflow for end-to-end efficiency and accuracy.

High-Precision Measurements

Through the fusion of GNSS and DJI’s high-precision, self-developed IMU, the Zenmuse L2 delivers:

• Vertical accuracy: ±4 cm

• Horizontal accuracy: ±5 cm

Exceptional Efficiency

Ready to operate immediately upon power-up, L2 can gather LiDAR and RGB data over an area of up to 2.5 km² in a single flight, enabling fast and effective large-area surveys.

Intuitive Integration

Paired with the Matrice 350 RTK and DJI Terra, the Zenmuse L2 offers a plug-and-play solution that simplifies flight planning, operation, and post-processing.

Advanced Frame-Based LiDAR

30% Longer Detection Range

• Detects up to 250 m at 10% reflectivity and 100 klx

• Up to 450 m at 50% reflectivity and 0 klx

• Operational altitudes now reach 120 m, boosting safety and coverage

Smaller Laser Spot, Higher Detail

• Spot size: 4 × 12 cm @100 m (5× smaller than L1)

• Enables enhanced detail capture and better vegetation penetration for more accurate DEM generation

Supports 5 Returns

• Captures more ground data under foliage for use in forestry, terrain modeling, and infrastructure planning

High Point Cloud Rate

• Up to 240,000 pts/s in both single and multiple return modes

• Maximizes point cloud density for richer datasets

Dual Scanning Modes

• Repetitive Mode: Uniform scanning for high-precision mapping

• Non-Repetitive Mode: Improved structural detection, ideal for power lines, forests, and complex infrastructure

Frame-Based Design Advantage

• Achieves up to 100% effective point cloud data rate

• Combined with a 3-axis gimbal, it supports complex and dynamic survey missions

High-Performance IMU

Enhanced Accuracy and Reliability

• Self-developed IMU integrates with RTK data for precise post-processing

• Provides accurate position, velocity, and attitude under varied environmental conditions

No Warm-Up Required

• The upgraded IMU is operational immediately after power-on

• Drone and IMU can begin missions as soon as RTK is in FIX status

RGB Mapping Camera

High-Resolution Imaging

• 4/3" CMOS sensor with 20 MP resolution

• Enlarged 3.3 μm pixel size

• Mechanical shutter with up to 200,000 actuation cycles

• Captures vivid true-color point clouds with a minimum photo interval of 0.7 seconds

Versatile Imaging Capabilities

• When LiDAR is not needed, the camera can capture photos, videos, or perform visible light mapping independently

Optimized User Experience

• Flight route flexibility

• Live point cloud preview

• Model playback and merging

• Auto-generated task reports

• PPK support

• One-click post-processing in DJI Terra

Application Scenarios

When integrated with DJI Enterprise drones and DJI Terra, the Zenmuse L2 supports diverse applications including:

• Land surveying & topographic mapping

• Utility and power line inspection

• Forestry and environmental monitoring

• Infrastructure management and construction planning
