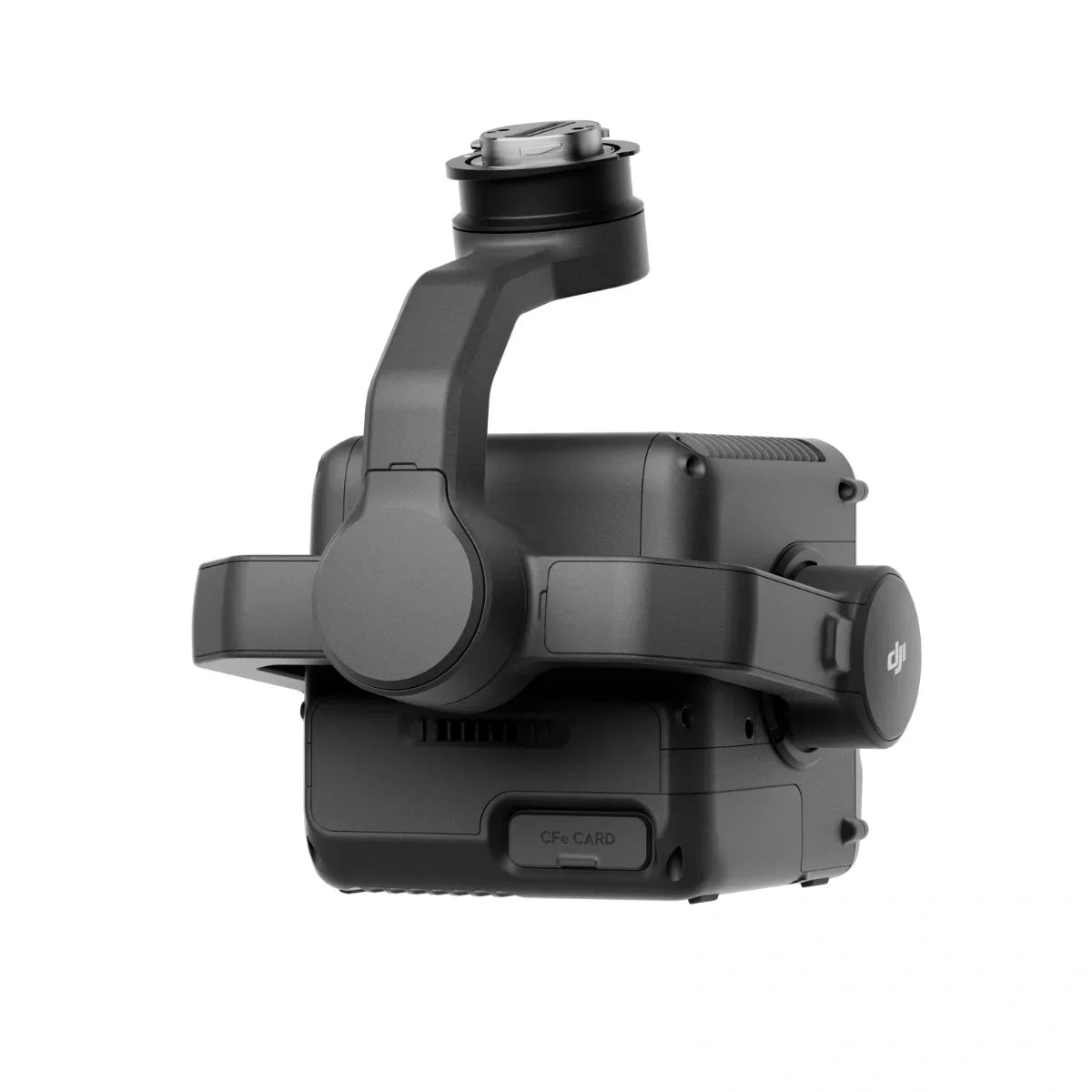

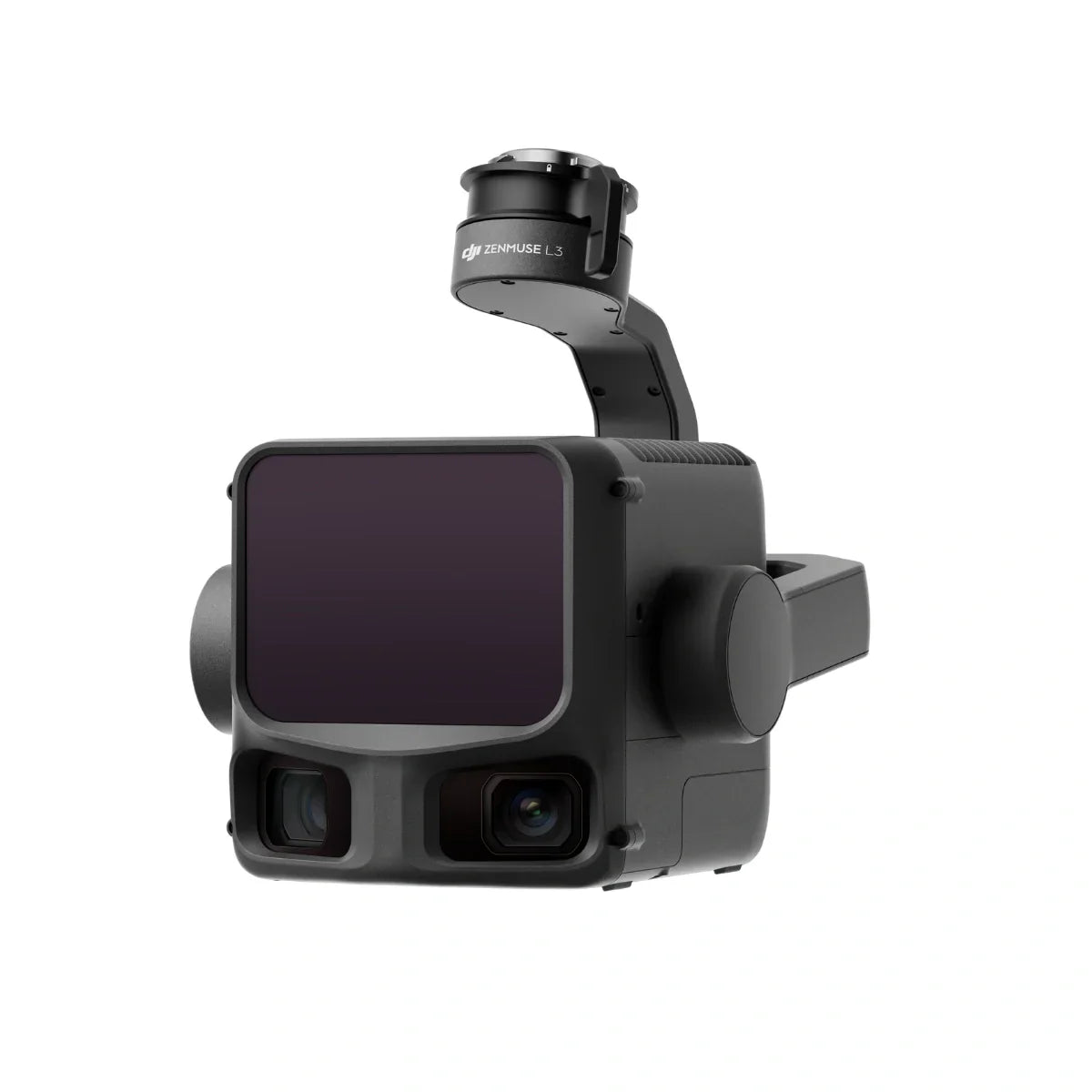

DJI Zenmuse L3 | Long-Range LiDAR & Aerial Mapping System

Product Description

DJI’s Next-Generation High-Accuracy Aerial LiDAR System
Unlock professional-grade surveying with DJI’s most advanced long-range aerial LiDAR yet. Featuring a powerful 1535 nm Class 1 laser, the Zenmuse L3 delivers an impressive 950 m detection range—maintained even on 10% reflectivity surfaces and tested under 100 klx ambient light. At a 100 kHz pulse rate, it ensures reliable long-distance performance, while the adjustable pulse rate provides flexible power output to adapt to diverse operational scenarios.

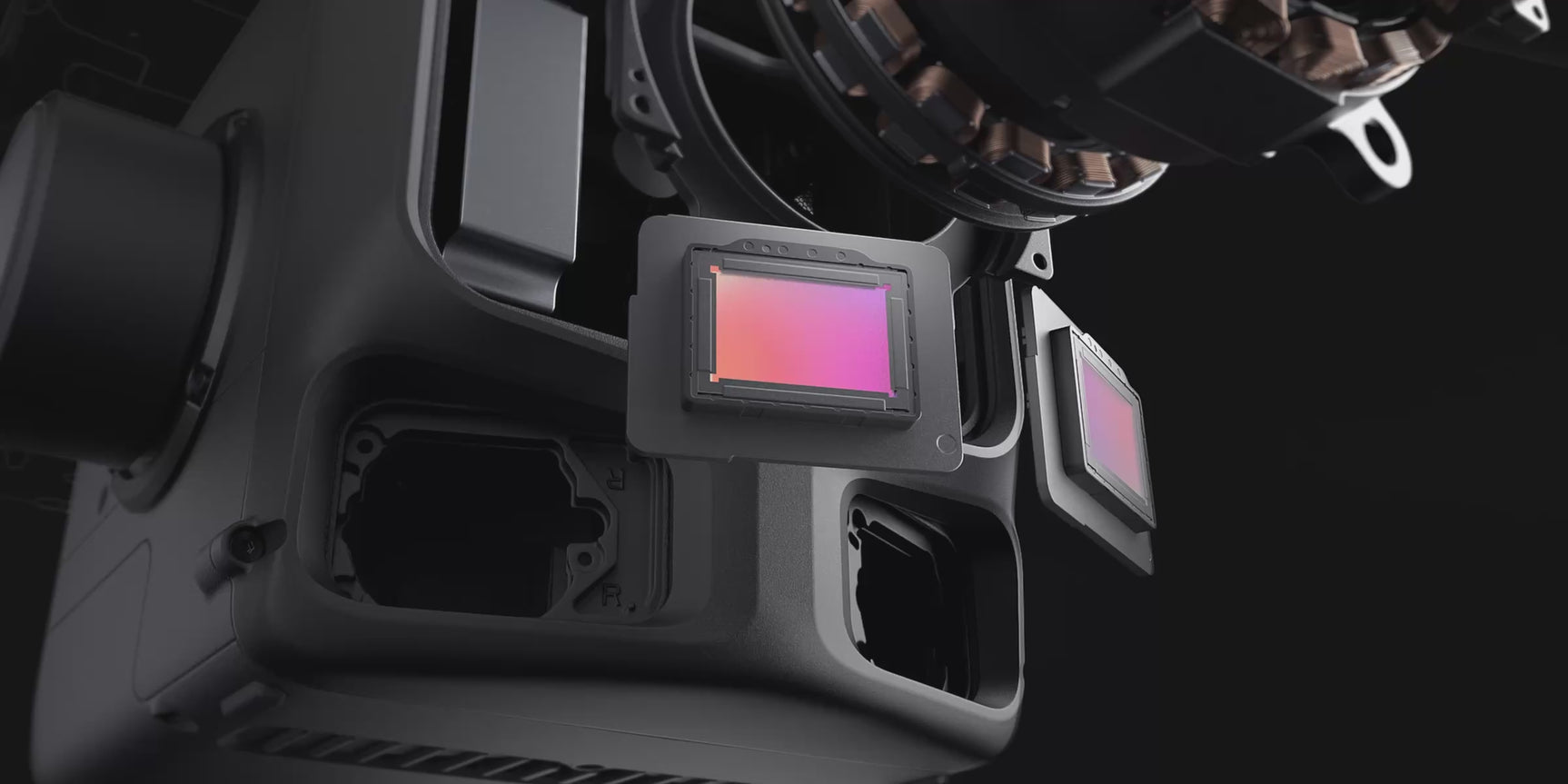

Dual 100 MP Micro 4/3 RGB mapping cameras and a high-precision POS system accelerate geospatial data acquisition, supporting up to 100 km² of daily coverage. Typical flight altitudes of 300–500 m significantly expand single-flight coverage, boosting mapping efficiency while preserving high measurement accuracy.

LiDAR Data Accuracy

Zenmuse L3 delivers exceptional measurement precision across a wide range of flight altitudes:

• < 3 cm vertical accuracy at 120 m

• < 5 cm vertical accuracy at 300 m

• < 10 cm vertical accuracy at 500 m

This level of precision easily supports mapping at 1:500, 1:1000, and 1:2000 scales. Additionally, L3’s point cloud thickness is only half that of Zenmuse L2, enabling higher-fidelity terrain modeling, cleaner feature extraction, and superior support for advanced geospatial analysis.

High Penetration & High Ground Point Density

With a smaller laser spot and higher single-pulse energy, Zenmuse L3 offers significantly enhanced vegetation and terrain penetration. It captures more ground points with greater completeness, dramatically improving the accuracy and integrity of terrain reconstruction. This high-density ground capture ensures precise surface fitting, making L3 ideal for forestry, topographic mapping, utilities, and corridor surveys.

High Efficiency for Large-Area Mapping

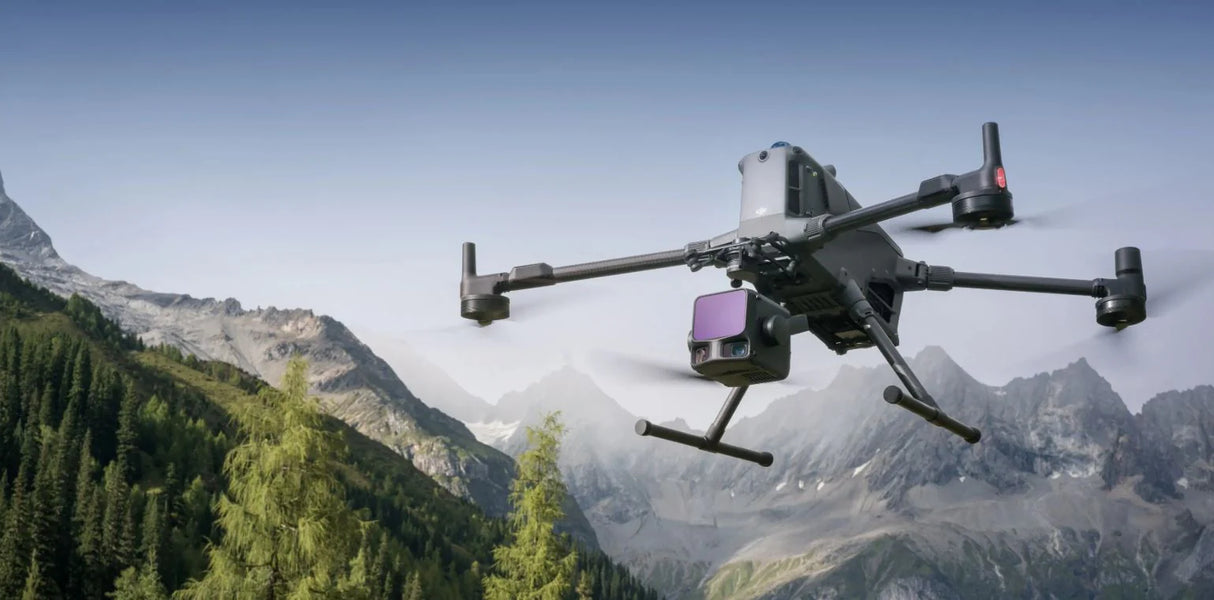

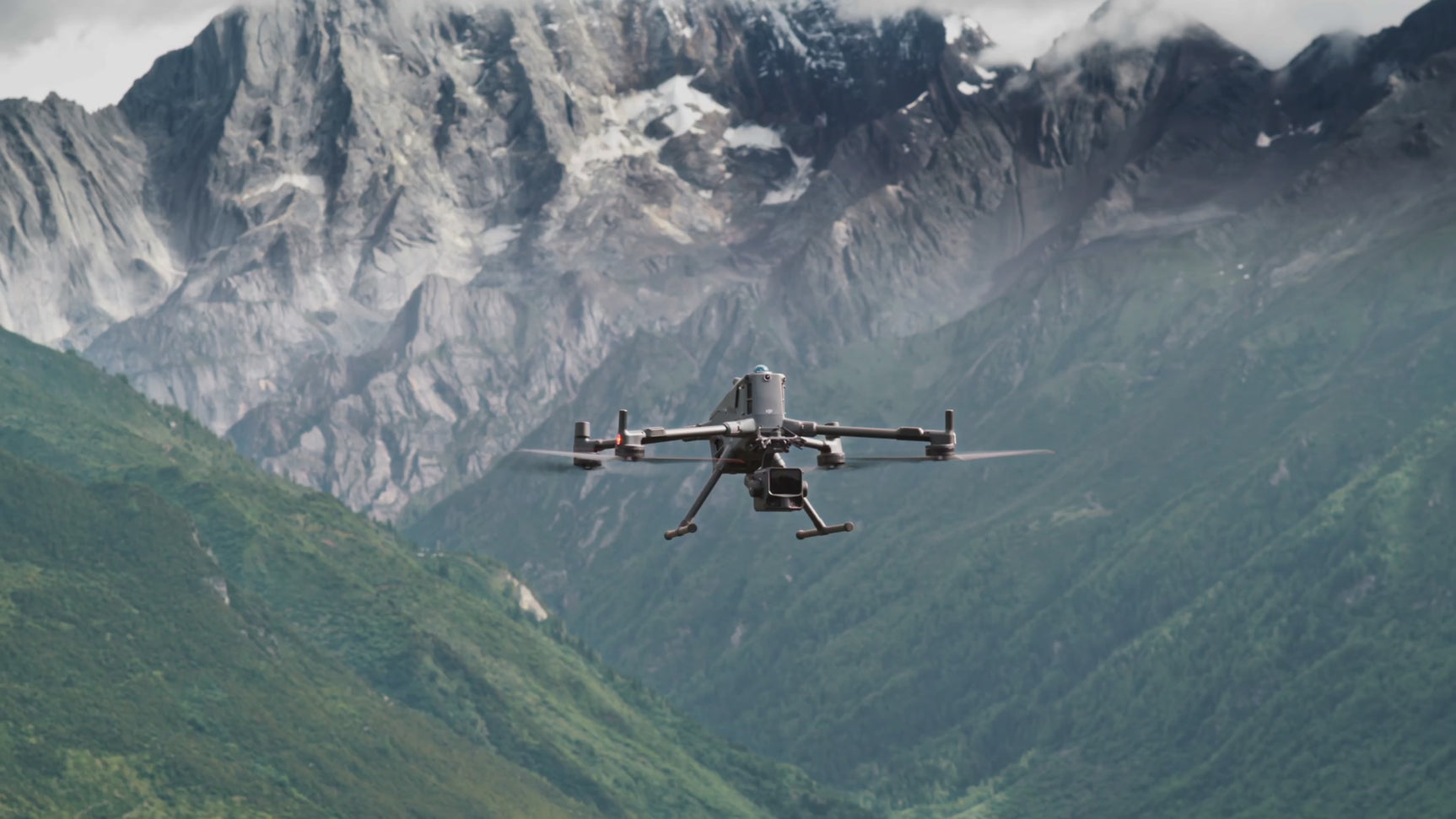

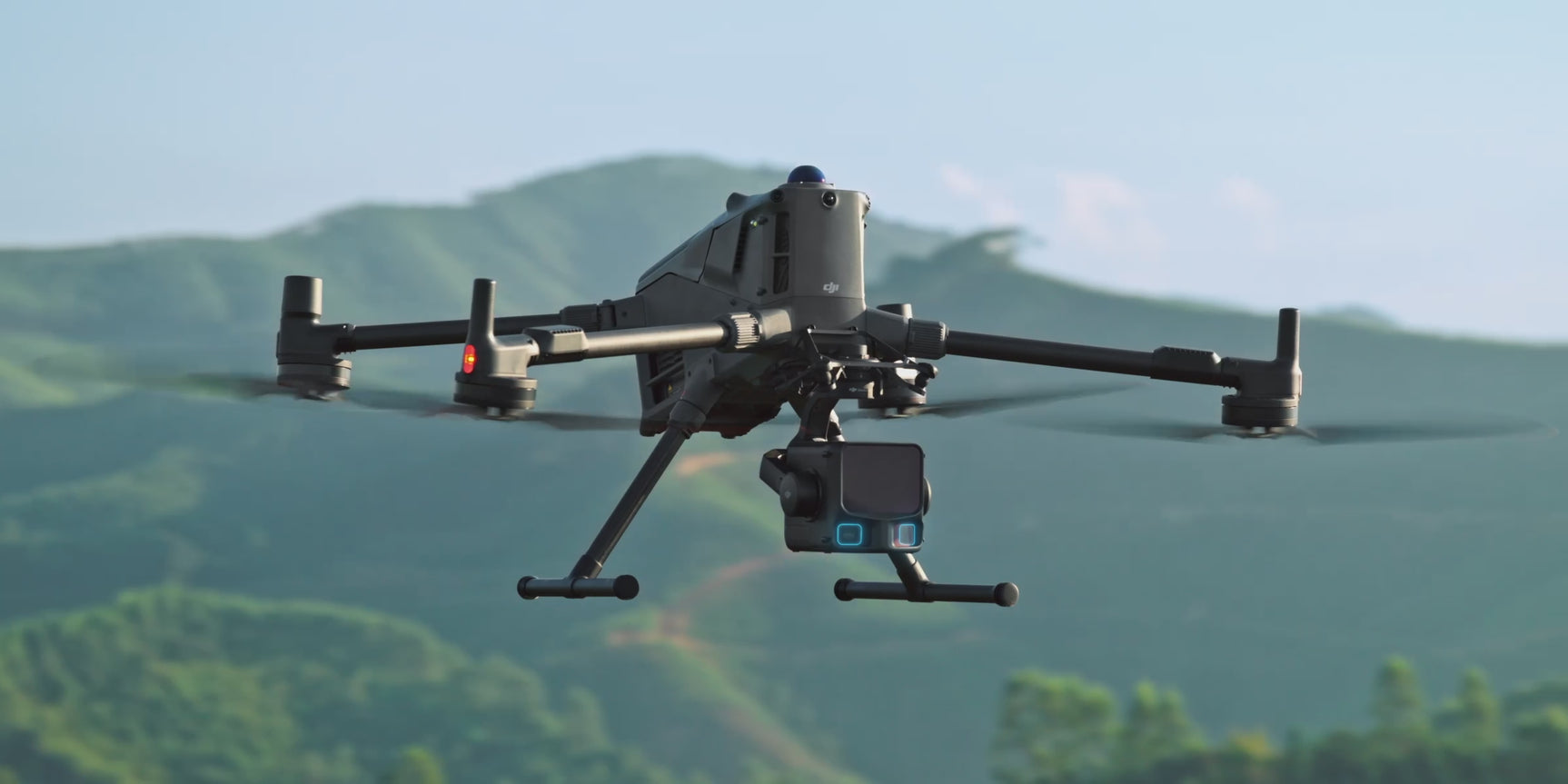

When deployed on the DJI Matrice 400, the Zenmuse L3 enables unmatched field productivity. At a flight altitude of 300 m, a single flight can cover up to 10 km²—and with continuous operations, teams can achieve up to 100 km² of daily coverage. This makes the L3 a top-performing solution for large-scale corridor mapping, land surveying, mining, and digital-twin data acquisition.

Seamless DJI Ecosystem Integration

Built exclusively for the DJI Matrice 400 RTK, the Zenmuse L3 integrates natively with DJI Terra, enabling the generation of point clouds, orthophotos, and 3D models within a single, unified processing platform. From capture to deliverables, the workflow remains fully streamlined and operator-friendly—ideal for enterprise teams requiring fast, accurate, and scalable aerial data solutions.

Key Benefits

• Live Point Cloud View + One-Click Processing (DJI Terra)
• 5 Returns for Dense Vegetation Penetration
• No IMU Warm-Up Required – Ready Immediately

Product Specifications

Drone Compatibility

• DJI Matrice 400

Software Compatibility

• DJI Terra – full mapping workflow from planning to 2D/3D model processing

What's in the Box
