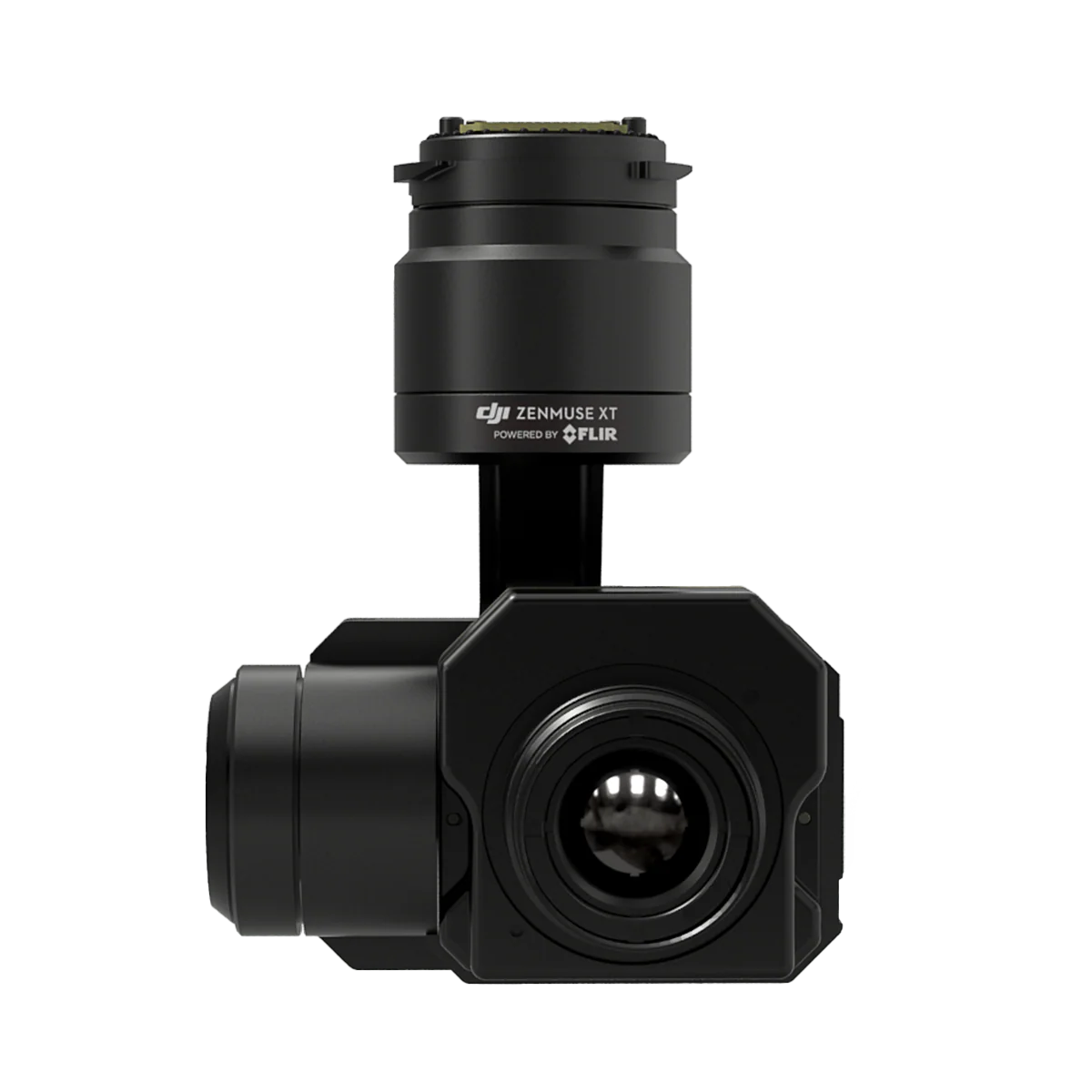

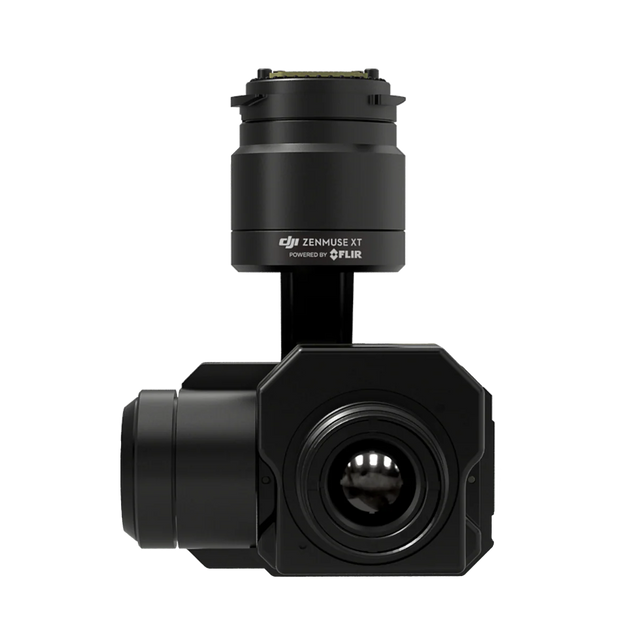

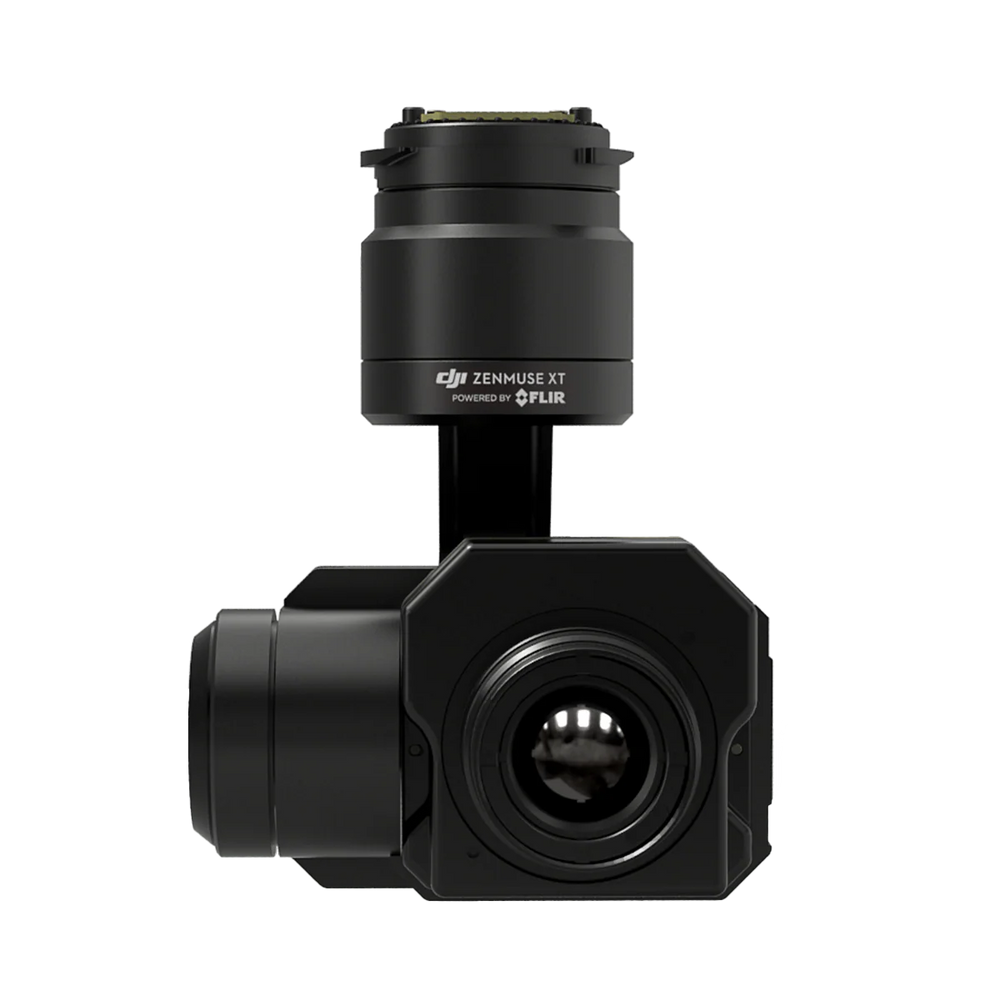

DJI Zenmuse XT 30Hz 640x512 9mm

DJI Zenmuse XT – Authorized FLIR Dealer

Unlock the Possibilities of Aerial Thermal Imaging

Thermal imaging from above is now simpler and more effective with the DJI Zenmuse XT. Developed in collaboration with FLIR, the global leader in thermal imaging, and DJI, the expert in aerial stabilization and transmission, the Zenmuse XT provides fast, reliable thermal data capture for professional applications. Scan large areas with speed and precision, then store and analyze with ease.

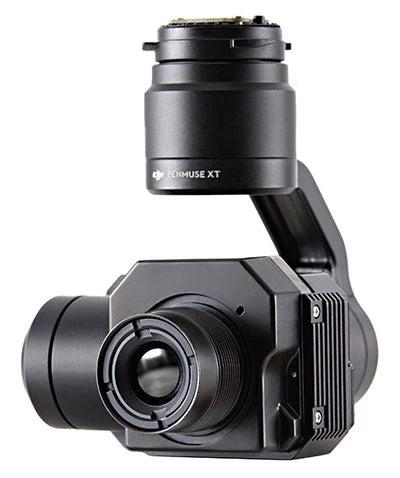

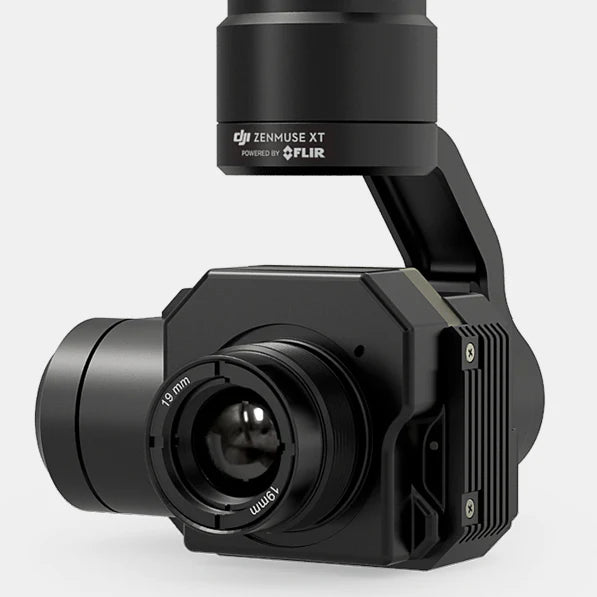

Integrated Thermal Camera

Purpose-Built by FLIR

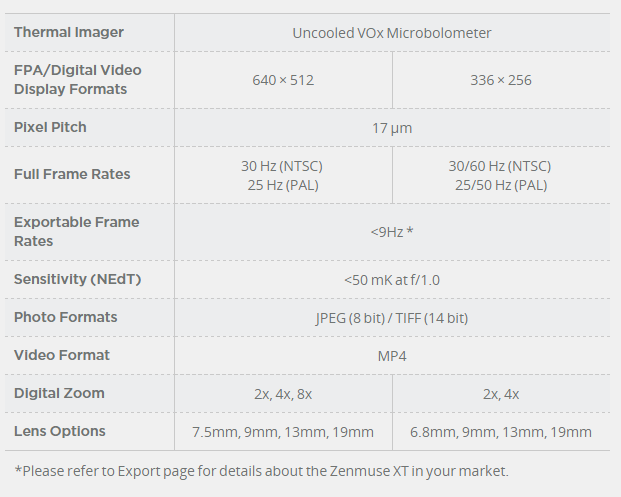

The Zenmuse XT is powered by a FLIR thermal sensor offering high thermal sensitivity of <50mK, enabling accurate temperature readings for analytics and telemetry. Available in two core configurations:

• 640 x 512 @ 30 fps

• 336 x 256 @ 60 fps

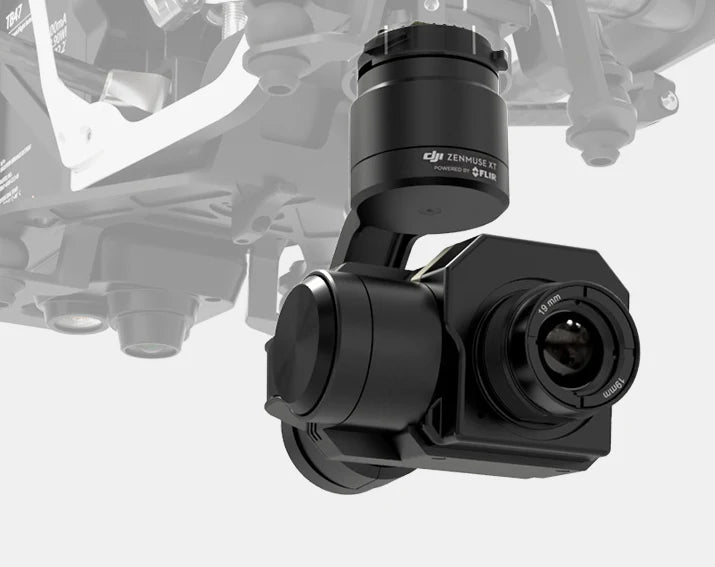

Each configuration is available with four lens options to meet specific operational requirements. The camera is stabilized by a custom DJI gimbal, delivering smooth, high-quality imagery and full 360° rotation for seamless operation.

FLIR + DJI = Powerful Aerial Solutions

DJI’s world-renowned gimbal systems and flight platforms are ideal for high-performance aerial thermal imaging. Zenmuse XT enables drone operators to position a FLIR thermal imager precisely in 3D space, unlocking new use cases across industries:

Applications

• Search and Rescue

• Precision Agriculture

• Roof Inspections

• Power Line & Substation Inspection

• Firefighting

• Cell Tower & Bridge Inspection

• Wildlife & Environmental Monitoring

• Security & Surveillance

• Surveying

• Custom Use Cases

See the Unseen

FLIR thermal cameras visualize subtle temperature differences, helping detect equipment failures, locate missing persons, identify hot spots, and more.

Advanced Image Enhancement

XT Image Enhance Technology

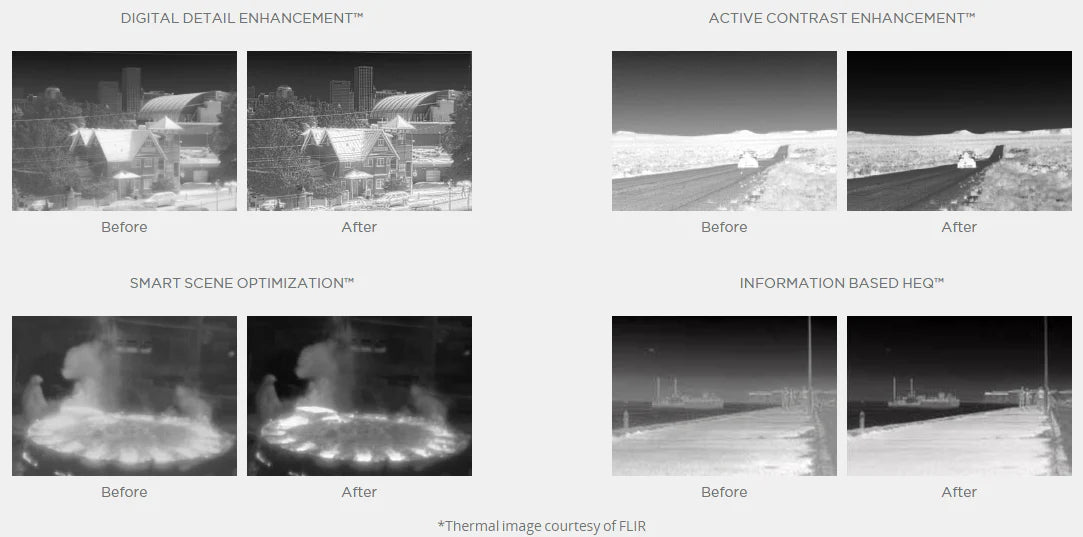

FLIR has equipped the Zenmuse XT with a suite of image optimization tools for maximum clarity:

• Digital Detail Enhancement™ (DDE) – Enhances fine image details

• Smart Scene Optimization™ (SSO) – Enhances high-contrast areas

• Active Contrast Enhancement™ (ACE) – Adjusts image contrast based on scene temperature

• Information Based HEQ™ (IBHEQ) – Compresses complex scenes for clear visualization

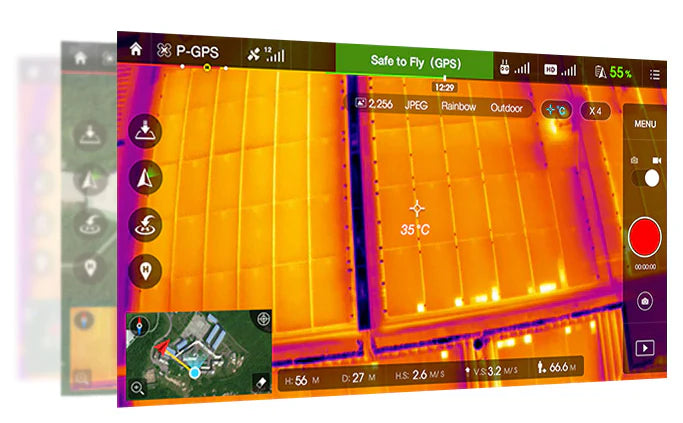

Fingertip Control via DJI GO App

Operate the Zenmuse XT entirely through the DJI GO app, offering a low-latency live view and instant access to all core camera functions:

• Spot Metering: Temperature at midpoint

• Digital Zoom

• Single Shot or Interval Shooting Modes

• Photo & Video Preview, Download

• Simultaneous Video + Photo Capture

• Adjustable Camera Settings:

  • Palette (LUT)

  • Scene (AGC)

  • Region of Interest (ROI)

  • Isotherm Mode

Mission-Ready Flight Performance

Compatible with DJI Inspire 1 & Matrice 100

The Zenmuse XT integrates seamlessly with DJI flight platforms, offering rapid deployment and access to features like DJI Lightbridge, Follow Me, Point of Interest, and SDK compatibility.

• Inspire 1: Up to 22 minutes with TB48 battery (hovering, Zenmuse XT only)

• Matrice 100: Up to 35 minutes with dual TB48D batteries (hovering, Zenmuse XT only)

Flight times vary based on conditions and payload configuration.

Lens Field of View Specifications
