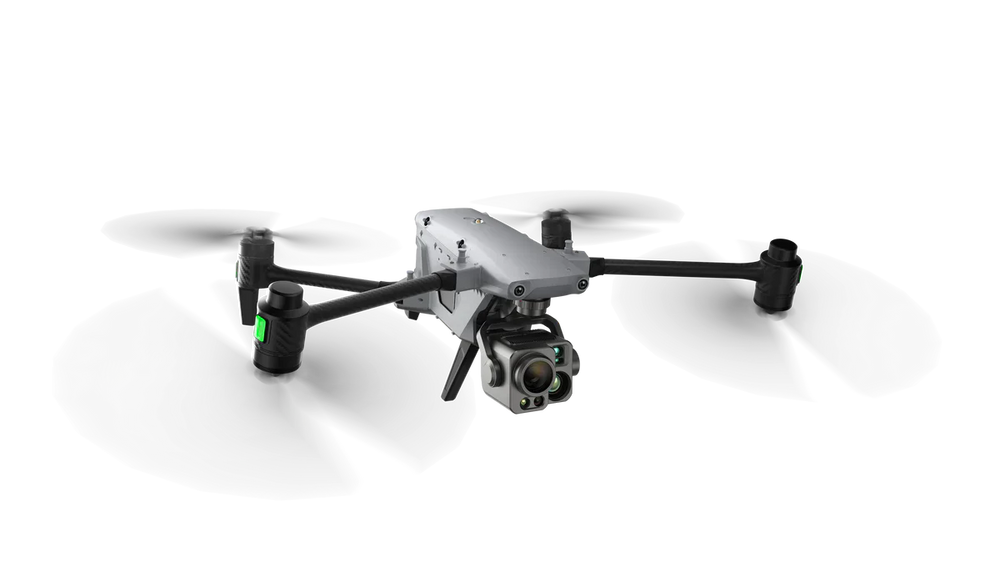

Autel Robotics Alpha L35T Drone

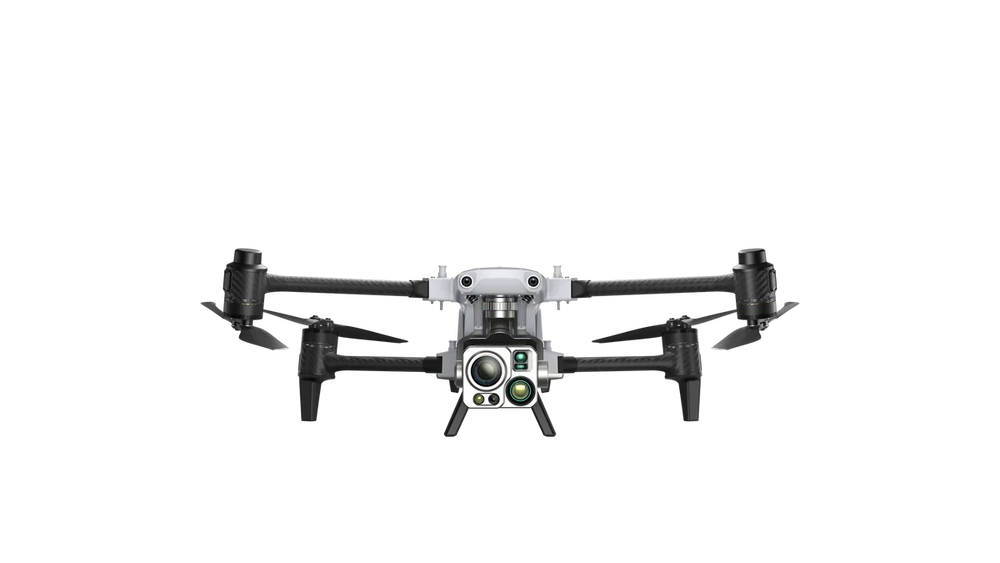

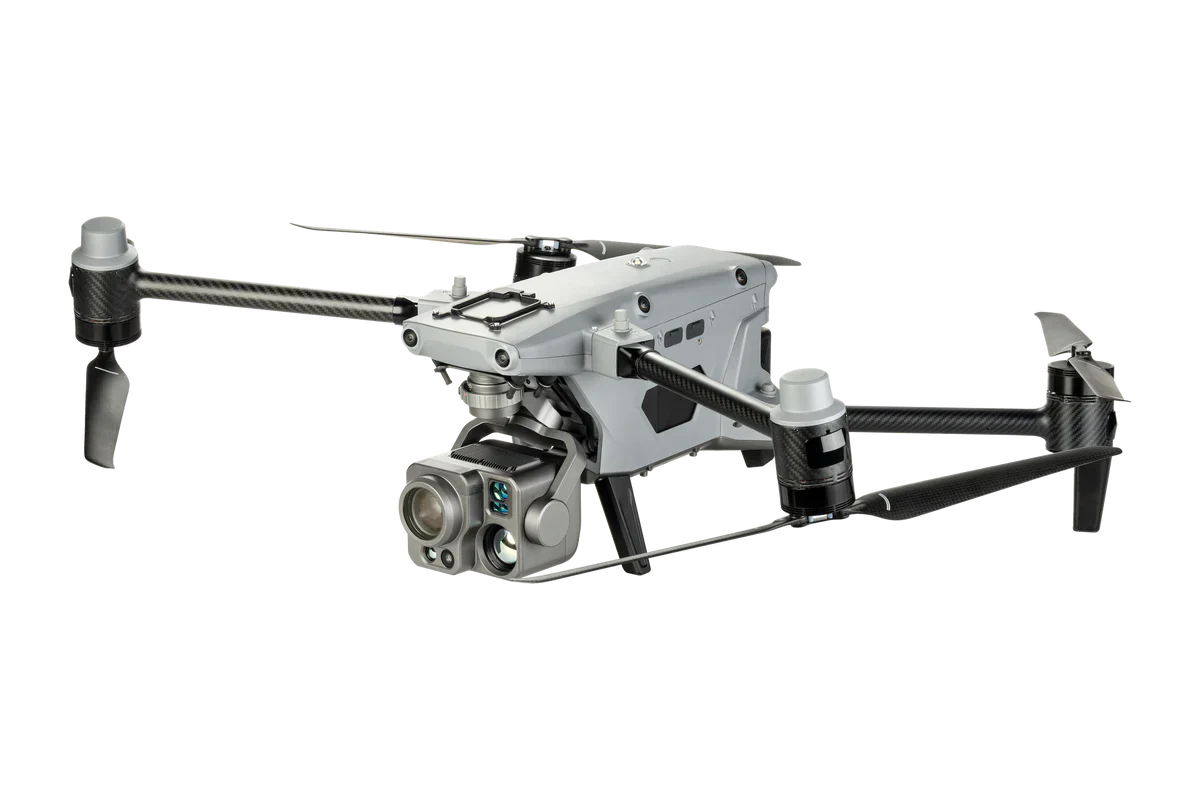

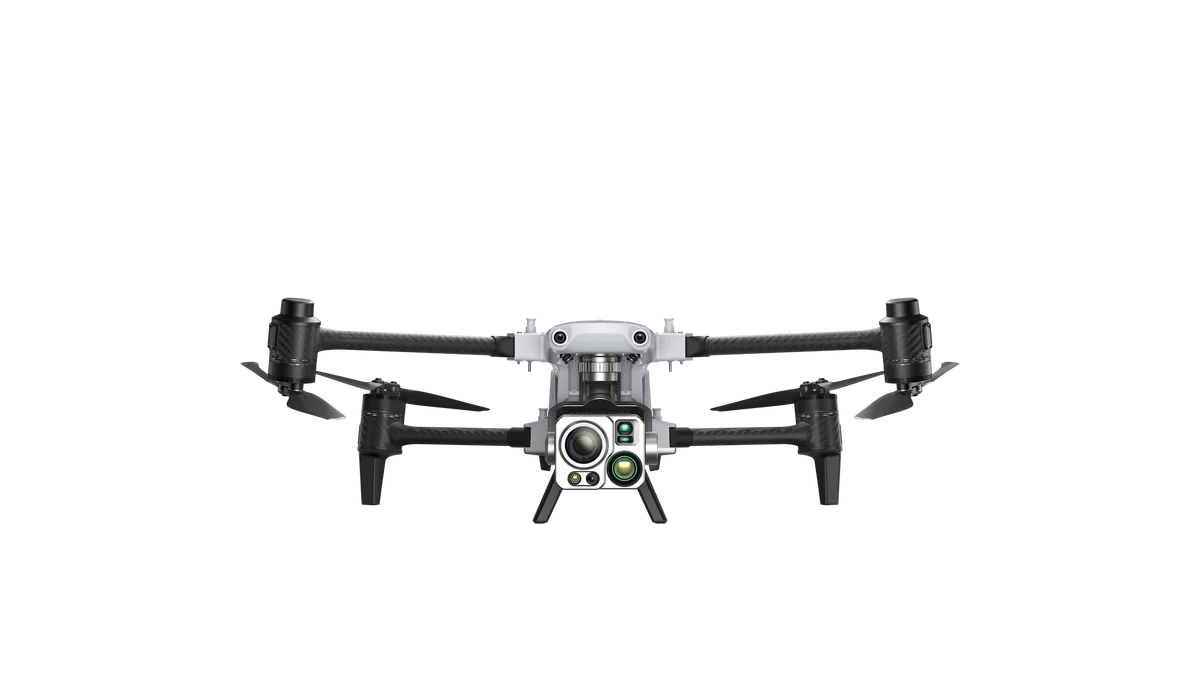

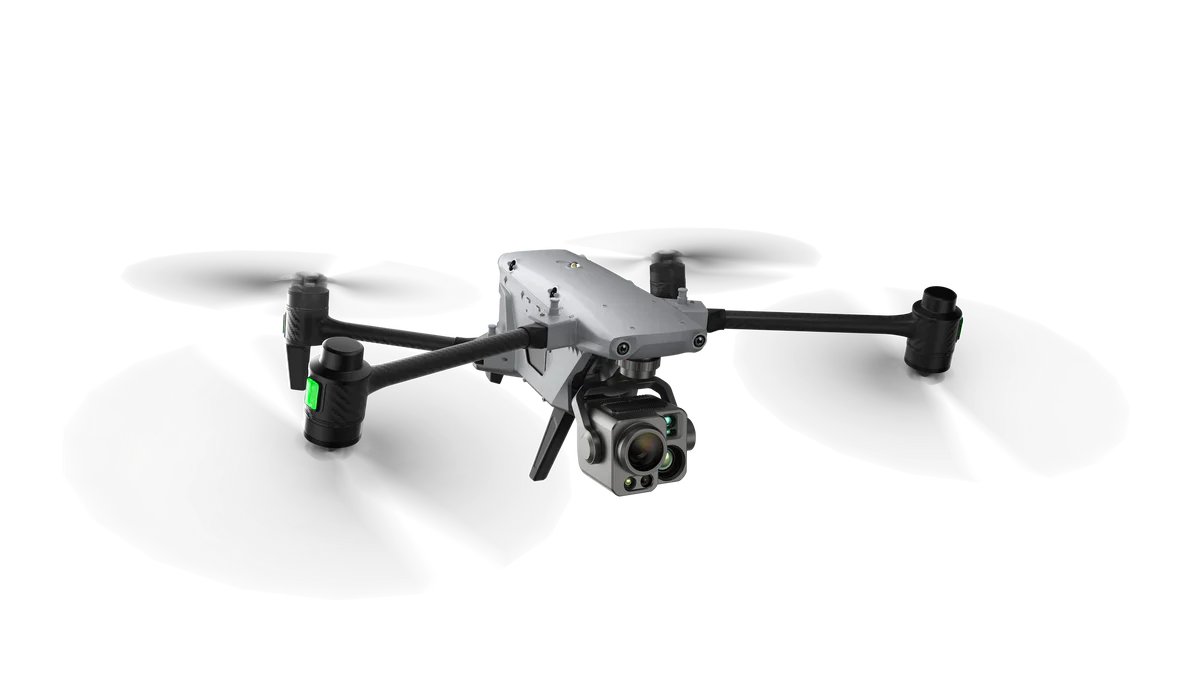

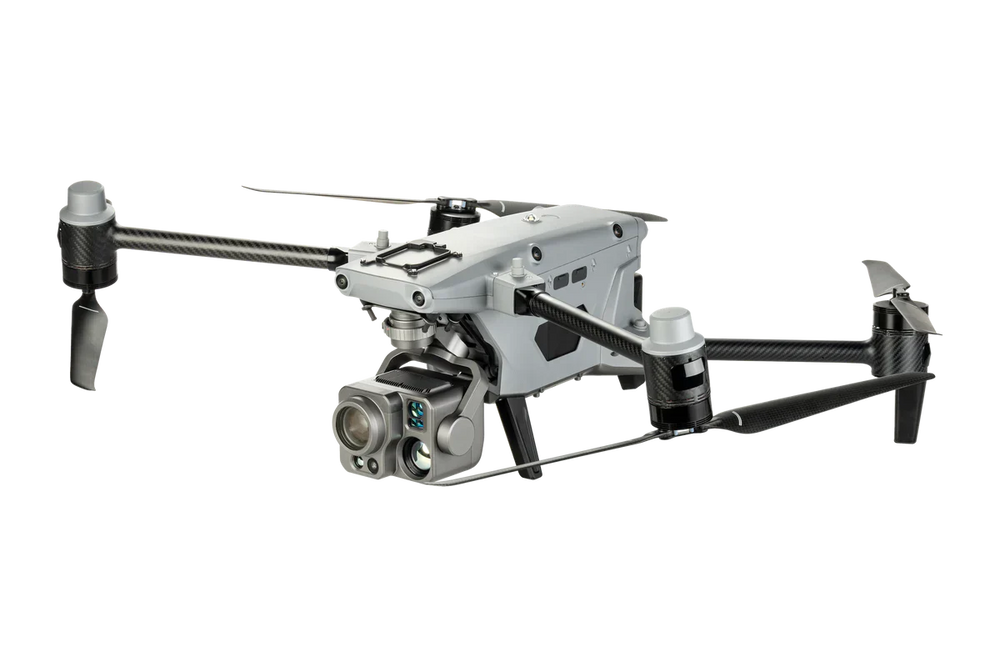

Autel Robotics Alpha Industrial Drone with DG-L35T Gimbal Camera

Engineered for advanced commercial and industrial operations, the Autel Alpha is a rugged, multi-functional drone that combines powerful imaging, unmatched obstacle detection, fleet coordination, and reliable autonomy. Featuring the DG-L35T Gimbal Camera and a robust set of accessories, the Alpha is ideal for inspection, public safety, surveying, and more.

5-in-1 Imaging System

Wide-Angle Visual Camera

• 1/2" CMOS sensor, 48MP resolution

• 84° diagonal field of view for broad situational capture

Telephoto Visual Camera

• 8MP 1/1.8" CMOS sensor, up to 4K resolution

• Features 35x optical and 560x digital zoom for safe, distant observation

Dual Thermal Imaging (Wide & Telephoto)

• Uncooled VOx microbolometer sensor

• Wide thermal: 13mm focal length

• Telephoto thermal: 45mm focal length

• Temperature detection from -4°F to 1022°F

• 640 × 512 resolution, up to 56x digital zoom

Laser Rangefinder

• Measures distances from 33 feet to 1.25 miles

• Returns latitude, longitude, distance, and elevation of targets

720° Omnidirectional Obstacle Avoidance

Combining dual fisheye cameras in 5 directions and millimeter-wave radar in 6 directions, the Alpha provides all-around obstacle detection, even in dark or complex environments. It's sensitive enough to detect glass, wires, and narrow poles.

Anti-Interference Technology

Using GNSS visual positioning, adaptive frequency hopping, and Autel SLAM navigation, the Alpha delivers reliable flight performance even near power lines or other signal-disruptive environments.

A-Mesh Fleet Networking

Autel’s A-Mesh 1.0 technology enables:

• One-to-many fleet control

• Autonomous drone-to-drone communication

• Operates over long distances or through obstructed environments like urban areas or mountains

• Supports master-slave or single-control fleet setups

Autonomy Engine

The onboard Autonomy Engine continuously gathers environmental data to:

• Plan intelligent 3D flight paths

• Navigate complex environments like forests or urban infrastructure

• Enhance mission success in land surveying, emergency response, and industrial inspection

Multi-Payload Platform

Three built-in mounting points support a range of optional payloads. Through the Autel PSDK (Payload SDK), users can integrate:

• Searchlights

• Loudspeakers

• 4G/5G communication modules

• And other mission-specific tools

SkyLink 3.0 Transmission

Enjoy secure, long-range control and video streaming with:

• Up to 12.4 miles (20 km) transmission distance

• Four antennas and support for 900 MHz, 2.4 GHz, 5.2 GHz, and 5.8 GHz

• Dynamic frequency hopping

• 1080p30 video transmission with 64 Mbps data rate and low latency

Mission Types

• Quick Missions: Create and execute ad-hoc tasks during active operations

• Waypoint Missions: Define custom paths with adjustable parameters

• Polygon Missions: Survey irregular areas with one-tap area selection

Smart Flight Functions

• Tripod Mode: Fix the gimbal on a subject and maintain tracking automatically

• AI Target Recognition: Auto-identifies and locks onto people, vehicles, and boats, displaying real-time location on the map

Enterprise-Grade Data Security

• AES-256 encryption secures photos, videos, and logs

• Password protection

• Local-only data access; no cloud storage unless configured

Durability and Flight Performance

• IP55-rated for dust and water resistance

• Wind resistance: Up to 27 mph

• Flight speed: Up to 56 mph (no wind, near sea level)

• Flight time: Up to 40 minutes with hot-swappable dual batteries

App & SDK Support

• Autel Enterprise App for mission planning and control

• Autel Mobile SDK & Payload SDK for app development and payload integration

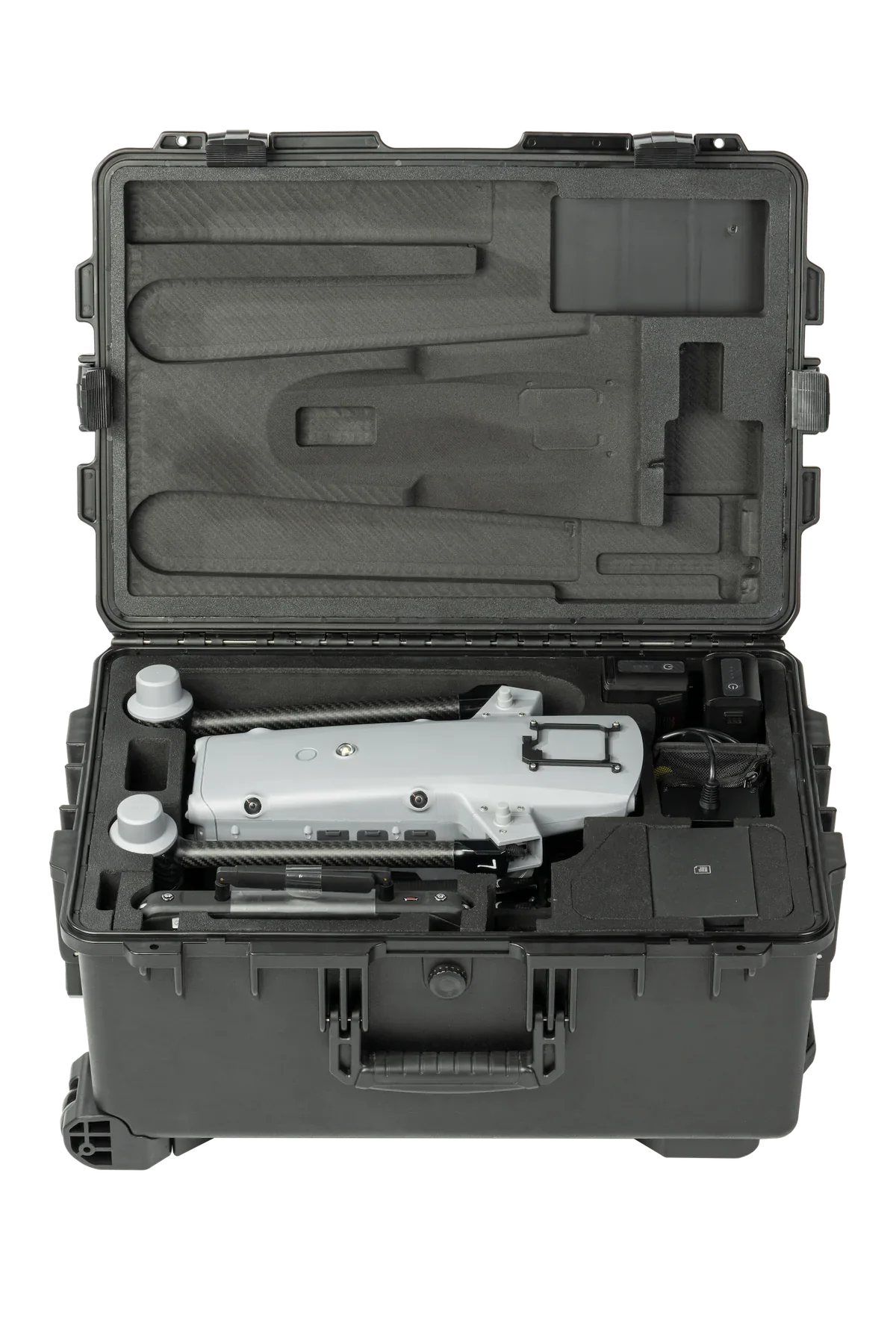

What's in the Box

• Autel Robotics Alpha Industrial Drone

• DG-L35T Gimbal Camera

• 6× Gimbal Dampeners

• Gimbal Protective Cover

• Lens Cleaner

• Soft Brush

• Dust Blower

• 2× Gimbal Interface Covers

• 2× Smart Batteries

• EF9-3 Remote Controller

• Battery Charger

• AC Power Cable

• Remote Controller Charger

• USB-C to USB-C Data Cable

• USB-C to USB-A Data Cable

• (See specifications for additional included items)

Warranty

• 1-Year Limited Warranty by Autel Robotics
