DJI FLIR Zenmuse XT 336x256 9Hz 13mm Lens - Radiometric

FLIR Authorized Dealer

Unlock the Possibilities of Aerial Thermal Imaging

Thermal imaging from above is now simpler and more precise with the DJI Zenmuse XT. Developed in partnership with FLIR, the global leader in thermal technology, and DJI, a pioneer in aerial gimbal systems and image transmission, the Zenmuse XT delivers fast, accurate thermal imaging for professional use. Capture expansive areas with precision, then store and analyze data for informed decision-making.

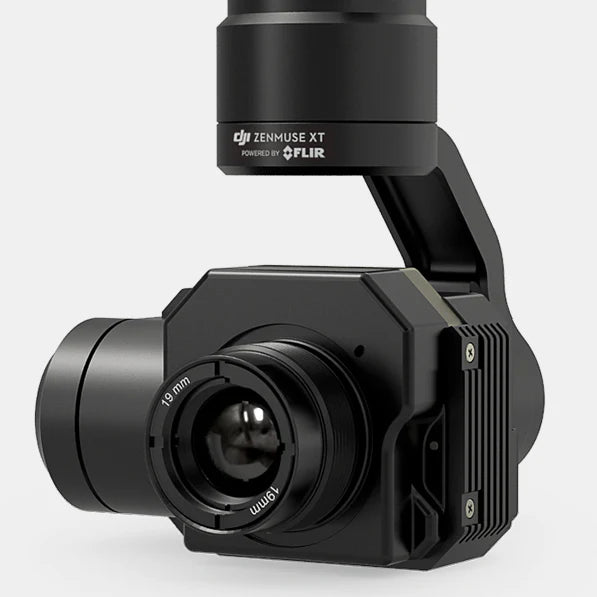

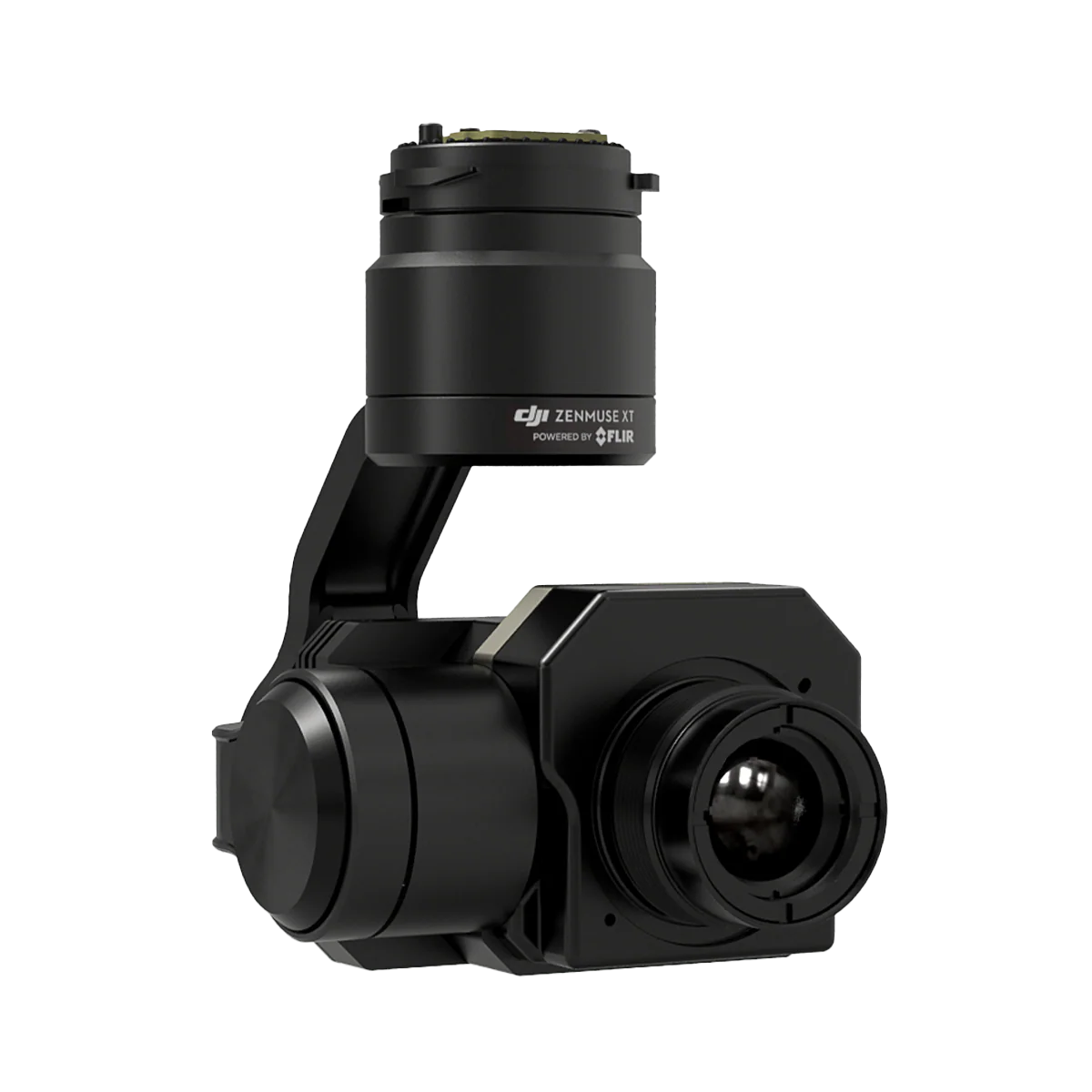

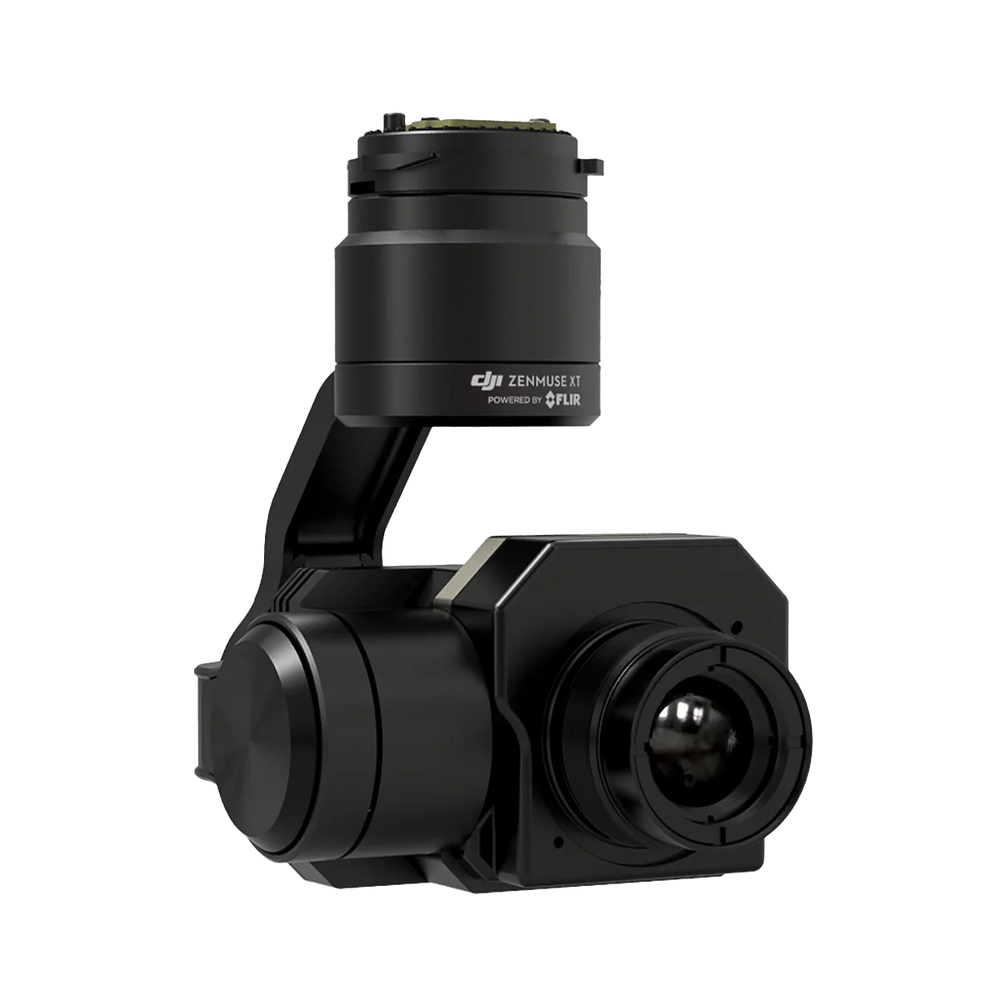

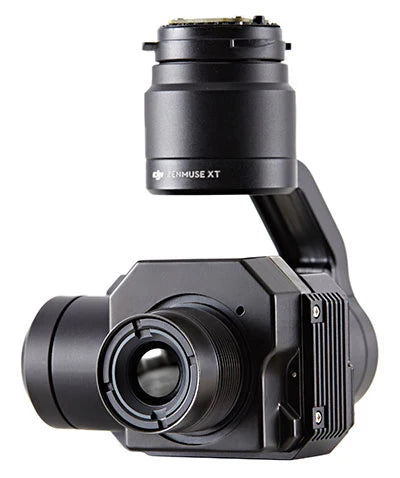

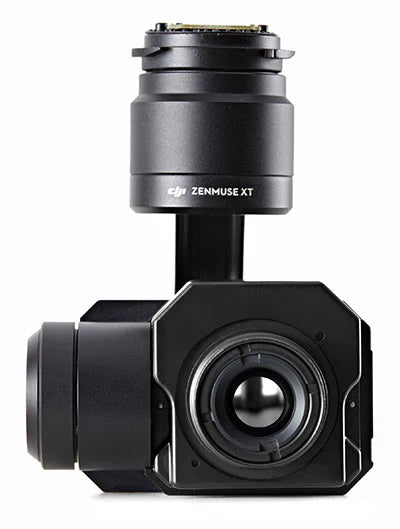

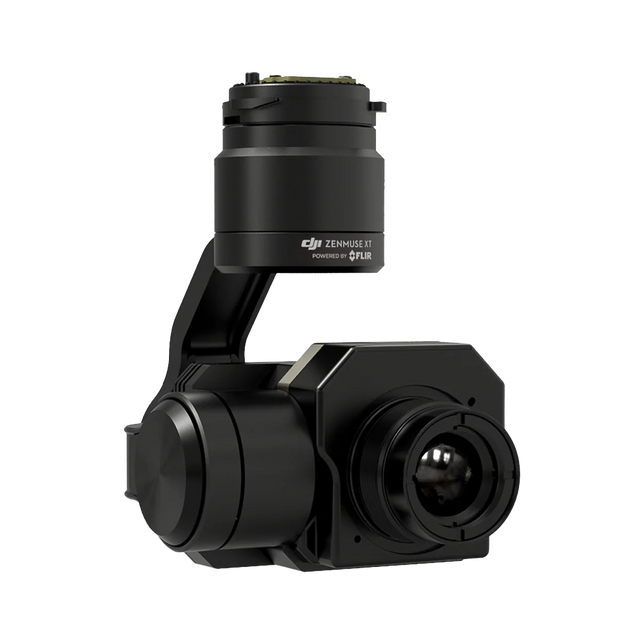

Integrated Thermal Camera

Precision Imaging by FLIR

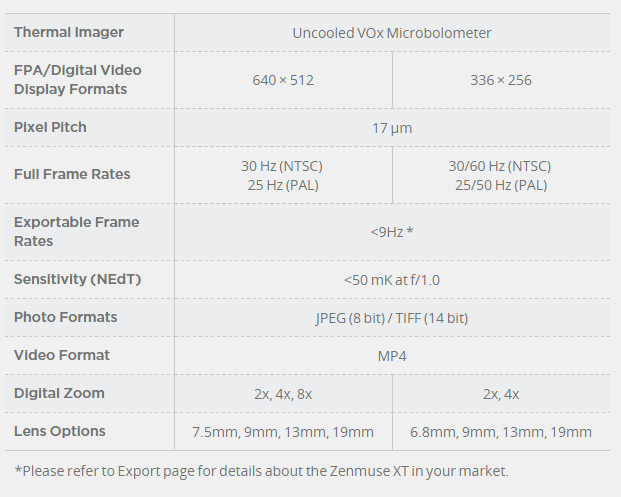

The Zenmuse XT camera, built by FLIR, delivers high-sensitivity infrared imaging (<50mK) and is available in two resolutions:

• 640 × 512 at 30 fps

• 336 × 256 at 60 fps

These thermal sensors provide accurate temperature data suitable for analytics and diagnostics. Each version offers four lens options to meet diverse operational needs. The integrated DJI 3-axis gimbal stabilizes the camera, ensuring clear, steady imagery with 360° rotational movement.

FLIR + DJI = Aerial Thermal Power

DJI’s Zenmuse gimbal system has become the industry standard for aerial cinematography—and it offers the same stability and integration for thermal applications. The Zenmuse XT leverages DJI’s proven flight platforms and FLIR’s thermal imaging to unlock new capabilities for commercial drone operators.

Aerial thermal imaging with the Zenmuse XT enhances operations across various industries, delivering critical insights in environments where visibility and access are limited.

Application Areas

• Search and Rescue

• Precision Agriculture

• Roof and Building Inspections

• Power Line and Substation Monitoring

• Firefighting

• Cell Tower and Bridge Inspections

• Security and Surveillance

• Wildlife Monitoring

• Surveying

• And many more custom applications

See what the eye can’t. FLIR cameras detect minute temperature variations, exposing hidden issues like equipment failure, structural damage, or the heat signature of missing persons.

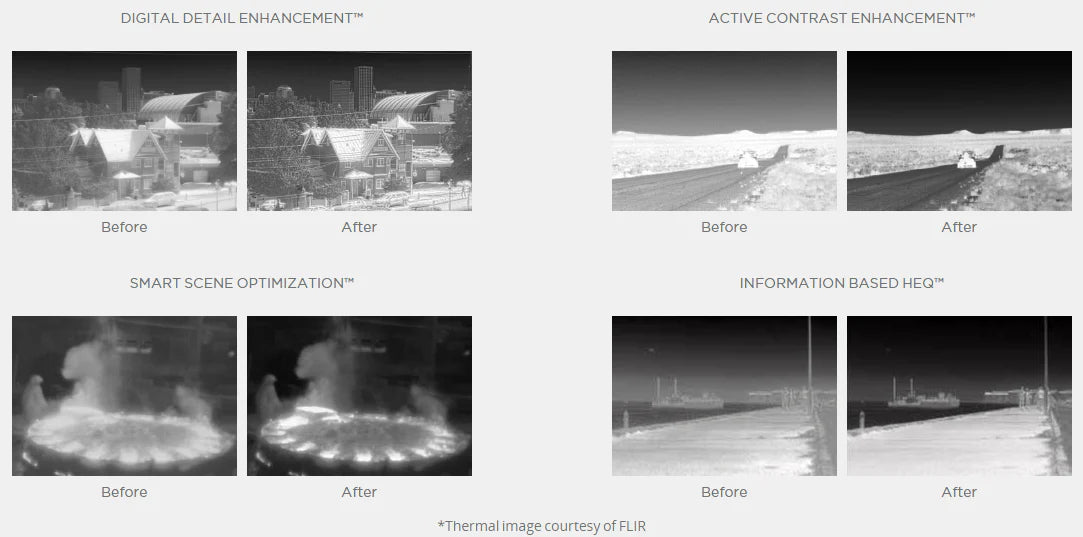

XT Image Enhancement

Advanced Infrared Optimization

Infrared data requires specialized enhancement to maximize detail and clarity. The Zenmuse XT includes FLIR's proprietary image processing suite:

• Digital Detail Enhancement™ (DDE): Enhances image sharpness

• Smart Scene Optimization™ (SSO): Improves visibility in high-contrast areas

• Active Contrast Enhancement™ (ACE): Adjusts contrast relative to temperature range

• Information-Based HEQ™ (IBHEQ): Compresses complex scenes for better image output

These enhancements ensure the highest quality visual data in real-time or post-analysis.

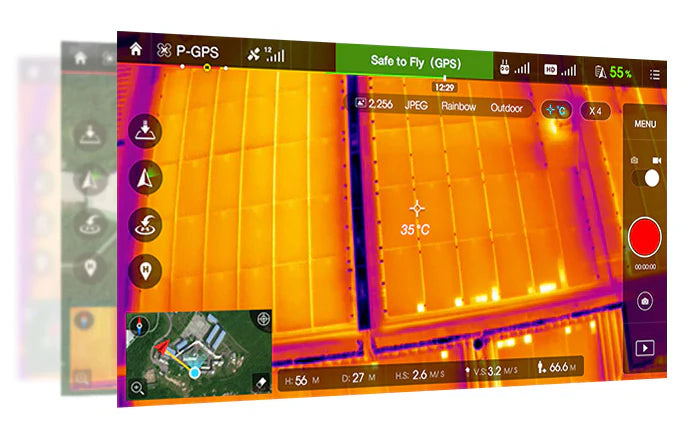

Fingertip Control

Full Camera Operation via DJI GO App

The Zenmuse XT is fully controllable through the DJI GO mobile app, giving operators live, low-latency views and immediate access to camera features:

• Spot Metering: Centralized temperature readings

• Digital Zoom

• Single Shot & Interval Shooting Modes

• Photo/Video Preview and Download

• Simultaneous Video Recording & Photo Capture

• Adjustable Parameters, including:

  • Palette (Look-Up Table)

  • Scene (Auto Gain Control / AGC)

  • Region of Interest (ROI)

  • Isotherm Mode

Mission Ready

Seamless Flight Platform Integration

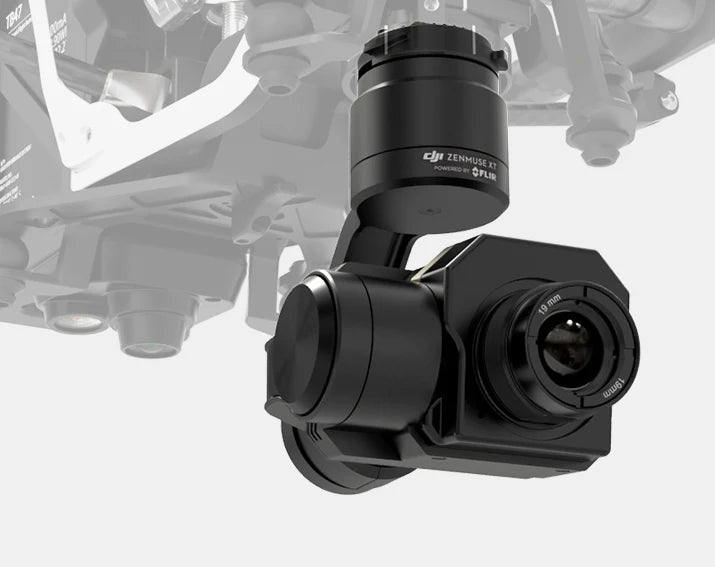

Designed for quick deployment, the Zenmuse XT mounts on the DJI Inspire 1 or Matrice 100, enabling immediate use. Its tight integration provides access to features like DJI Lightbridge video transmission, Point of Interest, Course Lock, Home Lock, Follow Me, and SDK capabilities.

Flight Durations

• Inspire 1: Up to 22 minutes (TB48 battery, hover, Zenmuse XT only)

• Matrice 100: Up to 35 minutes (dual TB48D batteries, hover, no additional payload)

Actual flight times may vary based on environmental conditions and payload configuration.

Lens Field of View (FOV) Options
